Product Details:
|
|
| Place of Origin: | Chongqing, China |
|---|---|
| Brand Name: | Ruichi |
| Model Number: | EC31S |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | By Container |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 70000 units per year |
|
Detail Information |
|||
| Product Name: | EC31S Mini Box Electric Truck | Fuel: | New Energy |
|---|---|---|---|
| Passenger: | 2 | Type: | Electric Mini Box Truck |
| Exterior Dimension: | 5010*1660*2480 Mm | Cargo Size: | 3060*1600*1620 Mm |
| Battery Capacity: | 41.93 KWh | Max. Mileage: | 259 Km |
| Power: | 60 KW | Max Speed (km/h): | 80 |
| Highlight: | Small Box Delivery Logistics Truck,7.93 Volume Small Box Truck,Ruichi EC31S Small Box Truck |
||
Product Description
Ruichi EC31S 7.93 Volume Small Box Truck For Delivery Logistics Truck
Ruichi EC31S Small Box EV Truck Specification
|
Model |
EC31S Mini Box Electric Truck |
|
Basic Parameter |
|
|
Size (mm) |
5010*1660*2480 |
|
Cargo Size (mm) |
3060*1600*1620 |
|
Curb weight (kg) |
1505 |
|
Rated load capacity(kg) |
965 |
|
Number of doors |
2 |
|
Cargo volume of van (m³) |
7.93 |
|
Max speed (km/h) |
80 |
|
Seater |
2 |
|
Electric Drive and Rear Axle |
|
|
Total motor power (kw) |
60 |
|
Battery Type |
Lithium Iron Phosphate |
|
Rated Torque (N.m) |
220 |
|
Power battery capacity (kWh) |
41.93 |
|
Cruising range under load (CLTC) |
259 |
|
Security, Intelligence |
|
|
ABS anti-lock braking |
● |
|
Manual air conditioning |
● |
|
Battery heating function |
● |
"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional,
and "-" - indicates that there is no such configuration;
DFSK Ruichi EC31S Features
Ruichi EC31S Small Moving Truck have 7.93m³, suitable to moving the cargo goods, it is the best choice of small logistics delivery mini truck.
1. Appearance features
Styling style: EC31S adopts a small long head shape, with a rounded front face and clear layers, giving people an honest and thick feeling.
New energy logo: blue elements are added to the front surround and the car logo to highlight the identity of the new energy vehicle.
2. Space and load
Cargo box space: The main feature is "super large space". The length, width and height of the cargo box car are 5010×1660×2480mm, and the cargo space is 7.9m³.
Rated load: The maximum rated load is 1475kg, which can meet the needs of urban distribution logistics with large loads.
3. Power system
Motor type and power: It is mainly equipped with permanent magnet synchronous motors from Shenzhen INVT and Shenzhen Dadihe, with a maximum output power of 60kW.
Power transmission form: The motor direct drive axle layout is adopted to reduce power transmission loss, give full play to motor performance and improve efficiency.
4. Battery and endurance
Battery source and capacity: It uses lithium iron phosphate batteries from Hefei Guoxuan High-tech Power, with a capacity of 41.932kWh.
Cruising range: The cruising range is 259 kilometers (constant speed method), which is sufficient for a day's urban distribution tasks.

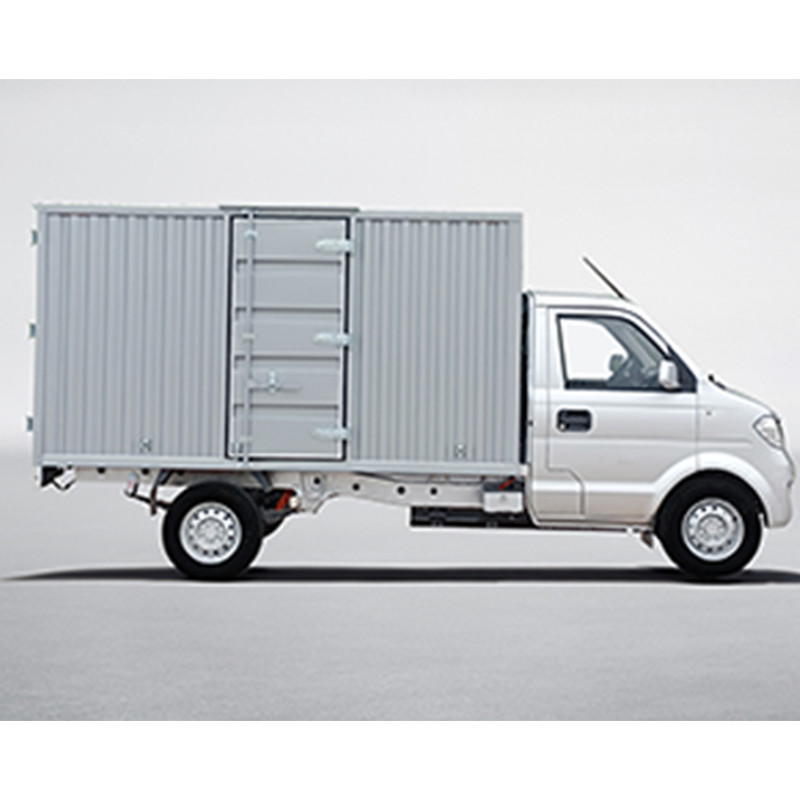

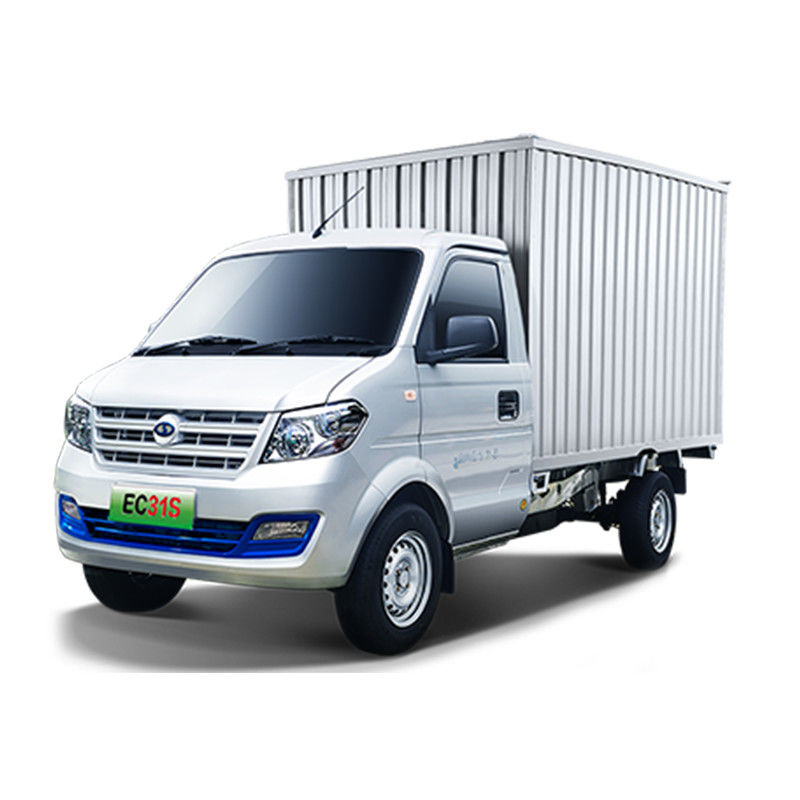

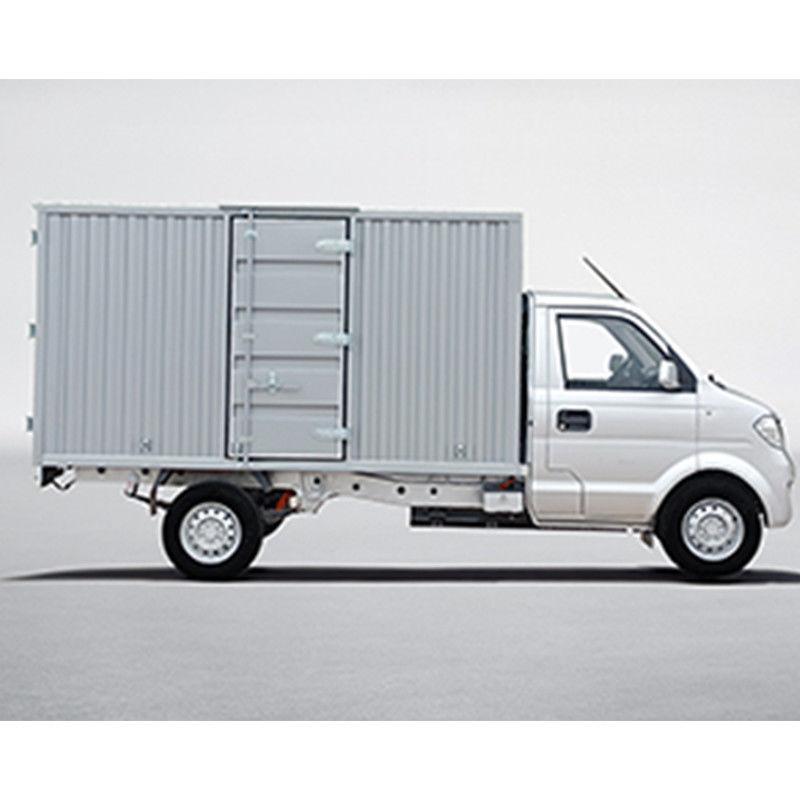

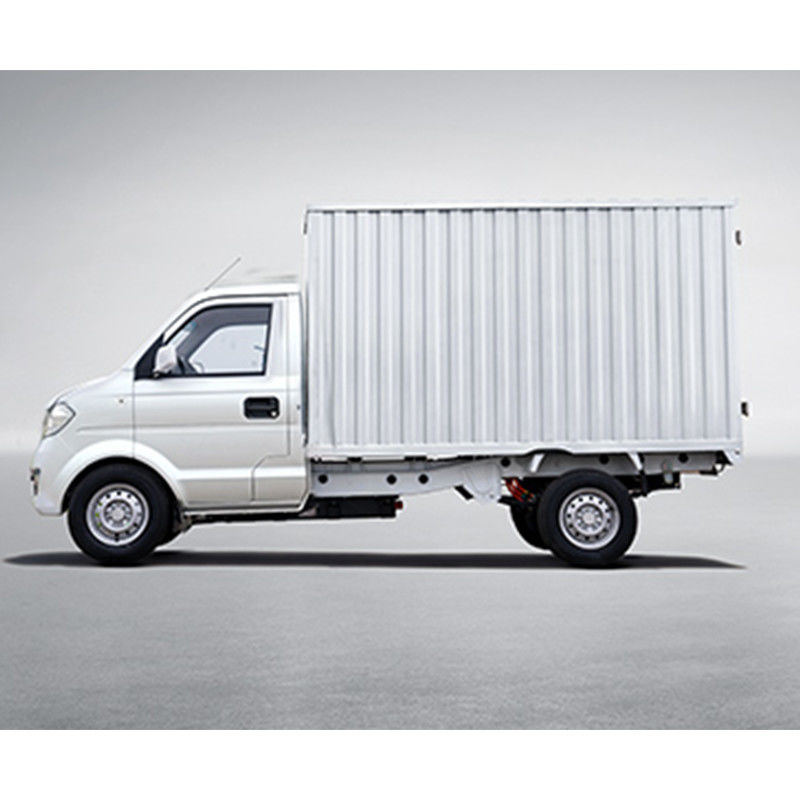

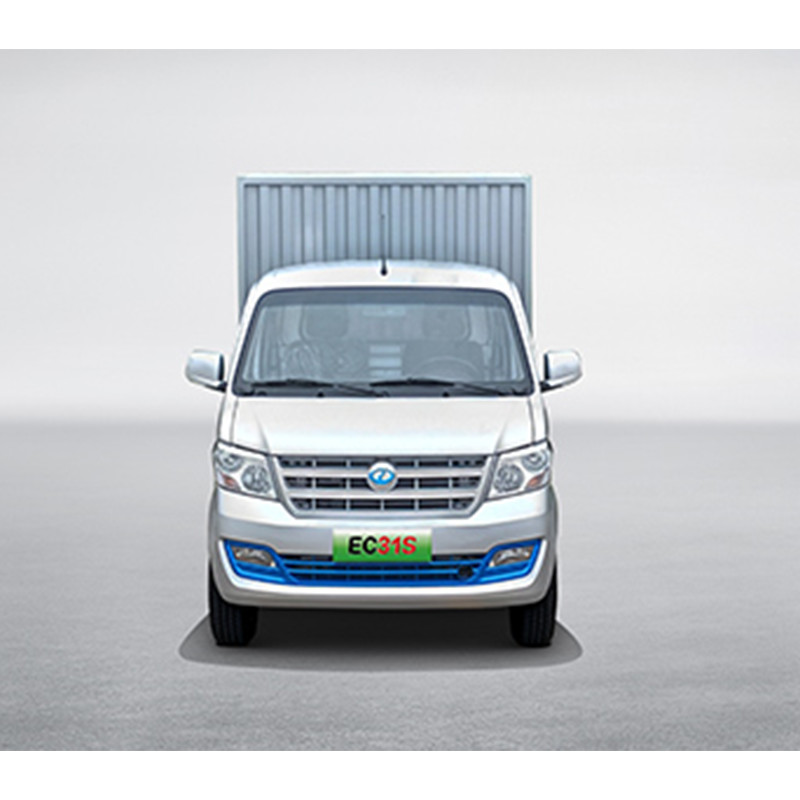

Ruichi EC31S Real Picture
