Product Details:
|
|
| Place of Origin: | Chongqing, China |
|---|---|
| Brand Name: | DFSK |
| Model Number: | ED75 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | By Container |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 70000 units per year |
|
Detail Information |
|||
| Product Name: | Ruichi ED75 | L*W*H(MM): | 5435×1700×2155 |
|---|---|---|---|
| Cargo Size(MM): | 3420×1550×1510 | Curb Weight (kg): | 1975 |
| Van Cargo Volume (m³): | 8.0 | Max Speed(km/h): | 80 |
| Total Motor Power (kW): | 70 | Power Battery Capacity (kWh): | 50.38 |
| Operating Mileage (CLTC): | 242 | Fuel Type: | All Electric |
| Highlight: | Dongfeng Ruichi Compact Cargo Van,Compact Cargo Van ED75,2 seats Electric Cars 80km/h |
||
Product Description
Specification
| Models |
ED75
|
|
Standard version-Pioneer I
|
|
|
Basic parameters |
|
|
Body structure
|
load-bearing body |
|
L*W*H(MM) |
5435×1700×2155 |
|
Cargo Size(MM) |
3420×1550×1510 |
|
Curb weight (kg)
|
1975 |
|
Number of door
|
4 |
|
Number of Crew Members (People) |
2 |
|
Rated load mass (kg) |
1390 |
|
Van cargo volume (m³) |
8.0 |
|
Rear door opening mode |
●Side sliding door |
|
Side sliding door form |
Manual |
|
Max speed(km/h)
|
80 |
|
Approach angle (°)
|
14 |
|
Departure angle (°) |
16 |
|
Engine |
|
|
Total motor power (kW)
|
70 |
|
Total torque (N.m)
|
230 |
|
Motor type
|
Permanent magnet synchronous motor |
|
Battery Type |
Lithium Iron Phosphate |
|
Number of drive motors
|
1 |
|
Motor layout
|
Horizontal |
|
Power battery capacity (kWh) |
50.38 |
|
Operating mileage (CLTC) |
242 |
|
Chassis steering
|
|
|
Drive mode
|
Rear wheel drive |
|
Front suspension type
|
Double wishbone torsion bar spring |
|
Rear suspension type
|
Longitudinal leaf spring non-independent suspension |
|
Assist type |
Electro-hydraulic assist |
|
Body structure |
Load-bearing body |
|
Wheel brake |
|
|
Front brake type
|
Disc brakes |
|
Rear brake type |
Drum brake |
|
Parking brake type
|
Mechanical |
|
Front/rear tire specifications |
195/70R15LT 12PR |
|
Active/passive safety equipment |
|
|
Passive pedestrian protection device |
Seat belt |
|
Seat belt not fastened reminder |
● |
|
ABS anti-lock |
● |
|
Braking force distribution (EBD/CBC, etc.) |
● |
|
Reversing radar |
● |
|
External/anti-theft configuration |
|
|
Central locking in car |
● |
|
Front/rear electric windows
|
Front |
|
Remote key |
● |
|
Multimedia configuration |
|
|
Radio (with MP3)
|
● |
|
Number of speakers |
2 |
|
Lighting configuration |
|
|
Headlight |
Halogen |
|
Headlight height adjustable
|
● |
|
Seat configuration |
|
|
Seat material |
Fabric |
|
Driver's seat adjustment form |
Fore and aft adjustment + backrest adjustment |
|
Passenger seat adjustment form |
Fore and aft adjustment + backrest adjustment |
|
Air conditioner
|
|
|
Air conditioning temperature control method |
●Manual |
“●”——Indicates that this configuration is available, “○”——Indicates that this configuration is optional,
“-”——Indicates that this configuration is not available
Ruichi ED75 Best Compact Cargo Vans Feature

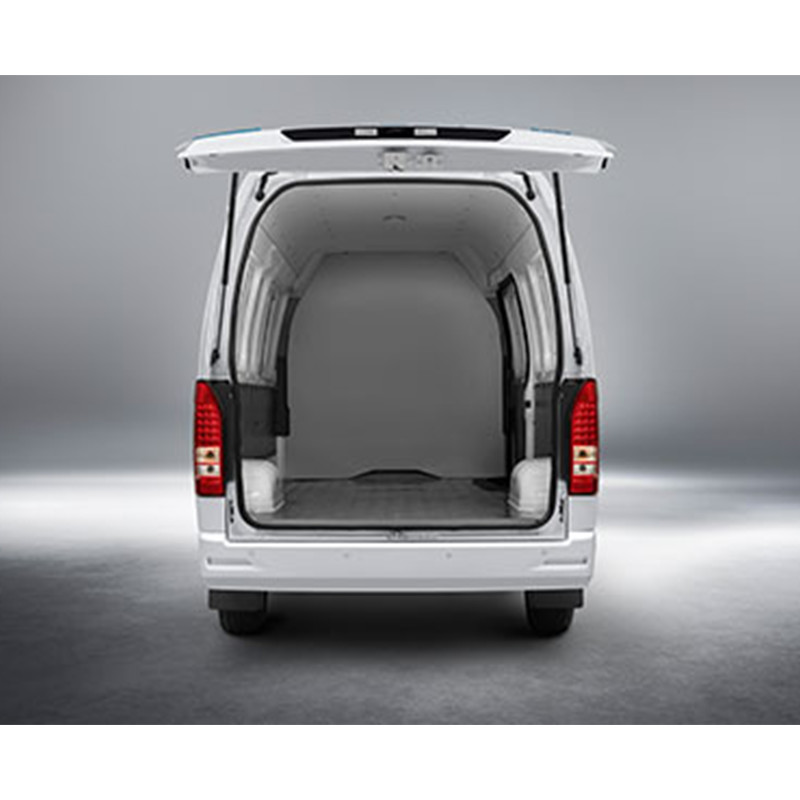

Supper Transport: 8m³ large cargo space; 3420mm long cargo box; 1700mm wide passenger space
High Efficiency: 50.38KWh high-efficiency single-pack battery; 70KW super-powerful motor; CLTC-242Km long battery life
Convenient Loading and Unloading: the vehicle height is within 2.2 meters; 1350mm ultra-wide tailgate;
the tailgate opens up and down nearly 90 degrees; the floor is 580mm above the ground, which is convenient for loading and unloading
