Product Description
DFSK Ruichi EC75 50.38kWh Fully Electric Vehicles 310km Range Small Cargo Van
Specification
| Item |
EC75 EV VAN
|
| EC75 Standard - Pioneer I |
EC75 Standard-Transcend I |
Long range - Pioneer type Ⅰ |
Long range - Beyond type Ⅰ |
|
Basic
|
|
Length*Width*Height (mm)
|
5130×1860×2020 |
|
Body structure
|
Load-bearing body |
|
Exterior color
|
White,Silver,Blue |
|
Interior color
|
Black/Grey |
|
Wheelbase (mm)
|
3200 |
|
Front track(mm)
|
1624 |
|
Rear track(mm)
|
1624 |
|
Number of doors
|
5 |
|
Number of seats
|
2 |
|
Rear door opening form
|
Double-sided manual sliding doors |
|
Tailgate opening form
|
180° rear hinge door open |
|
Cargo box size(mm)
|
2830×1740×1400 |
|
Cargo volume of cargo (m³)
|
6.9 |
|
Curb weight (kg)
|
1730 |
1785 |
|
Rated load weight (kg)
|
1200 |
1145 |
|
Power/Three Electrics
|
|
Type of energy
|
All electric |
|
Motor type
|
Permanent magnet synchronous motor |
|
Number of drive motors
|
1 |
|
Motor layout
|
horizontal |
|
Total motor power(kw)
|
70 |
|
Total motor horsepower (Ps)
|
95 |
| Total torque of electric motor(N.m) |
230 |
|
Battery type
|
Lithium iron phosphate |
|
Battery Capacity(KWh)
|
41.5 |
50.38 |
|
Cruising range (Km) (CLTC)
|
252 |
310 |
|
Battery heating function
|
● |
|
Fast charging
|
● |
|
Slow charging
|
○(3.3KW) |
●(3.3KW) |
○(6.6KW) |
●(6.6KW) |
|
Chassis steering
|
|
Drive mode
|
FWD |
|
Front suspension type
|
MacPherson independent suspension |
|
Rear suspension type
|
Longitudinal leaf spring non-independent suspension |
|
Assist type
|
(EPS)electric power steering |
|
Wheel brake
|
|
Front tire
|
195/75 R16LT |
|
Rear tire
|
195/75 R16LT |
|
spare wheel
|
○ |
|
Active/passive safety equipment
|
|
Tire pressure monitoring
|
○ |
|
Seat belt is not fastened
|
● |
|
Uphill assist
|
● |
|
ABS anti-lock braking
|
● |
|
Braking force distribution (EBD/CBC, etc.)
|
● |
|
Reversing radar
|
● |
|
Reversing video
|
— |
● |
— |
● |
|
Main driver's seat airbag
|
— |
● |
— |
● |
| Driver Fatigue Monitoring System (DMS) |
— |
● |
— |
● |
| Electronic Stability Control (ESC) |
— |
○ |
— |
○ |
|
Overweight warning
|
— |
○ |
— |
○ |
|
Internal configuration
|
|
Front/rear power windows
|
Front |
|
Air conditioning
|
Electric |
|
Gear shift form
|
Hold the block |
|
Multi-function steering wheel
|
● |
| The steering wheel is adjusted up and down |
— |
● |
— |
● |
|
Seat configuration
|
|
|
Seat material
|
fabric |
Leather + fabric |
fabric |
Leather + fabric |
| The main driver's seat is adjusted |
4-way (front and rear + backrest adjustment) |
6-way (front and rear + up and down + backrest adjustment) |
4-way (front and rear + backrest adjustment) |
6-way (front and rear + up and down + backrest adjustment) |
| Passenger seat adjustment form |
2-ways (backrest adjustment) |
|
Multimedia/intelligent
|
| V2L |
— |
○
(Optional slow charging) |
● |
|
Number of speakers
|
2 |
4 |
2 |
4 |
| 10.1-inch color screen for central control |
— |
● |
— |
● |
|
Speech recognition
|
— |
● |
— |
● |
| Wireless charging of your phone |
— |
● |
— |
● |
"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional,
and "-" - indicates that there is no such configuration;
2024 Ruichi EC75 Small Cargo Vans Electric Feature
Extra-large space: 1.86m extra-wide body, 7m³ extra-large loading space, can hold 166 boxes of cooking oil.
Extra-large driving and riding space, easily meets the needs of people with a height of 1.88 meters
Extra-wide double-side sliding door opening width 1014mm + 180-degree flat tailgate, multi-directional loading and unloading
Smart and easy to control: 10.1-inch central control voice control large screen, mobile phone APP remote control
Core highlights
Endurance
With an ultra-long endurance of CLTC310km, the Ruichi EC75 long-endurance version is equipped with a 50.38KWh battery pack and a three-in-one on-board charging system in terms of the core three electrics. It can achieve 30%-80% power replenishment in 30 minutes, and has an 8-year 400,000-kilometer ultra-long warranty, reducing the cost of using the car.
Loading space
The new car has an ultra-large loading space of nearly 7m³, with a body of 1.86 meters and a cargo box size of 283017401400mm. It can hold 166 boxes of cooking oil. There are double-side sliding doors with an opening width of 1014mm on both sides, and the tailgate is a 180-degree split tailgate, which is convenient for loading and unloading.
Comfortable configuration
Equipped with a horizontal driving and resting cabin, it can meet the needs of drivers with a height of 1.88 meters to sit and rest easily.
Other configurations
Equipped with a 10.1-inch intelligent voice control screen, a dedicated freight platform APP and the first wireless charging in its class, as well as an APP remote control interconnection system, intelligent non-sensing start, and electronic hand gear + EPB electronic handbrake.
Safety configuration
Equipped with driver airbag, four-wheel safety disc brake, fatigue driving monitoring, overweight warning, dual battery anti-theft, etc.

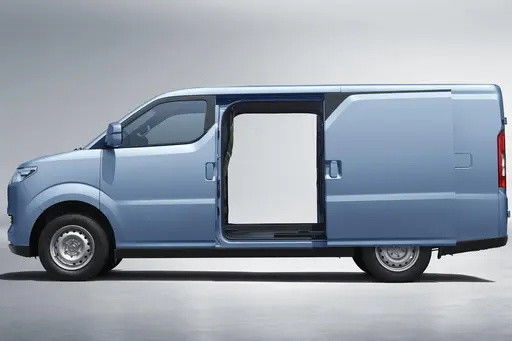

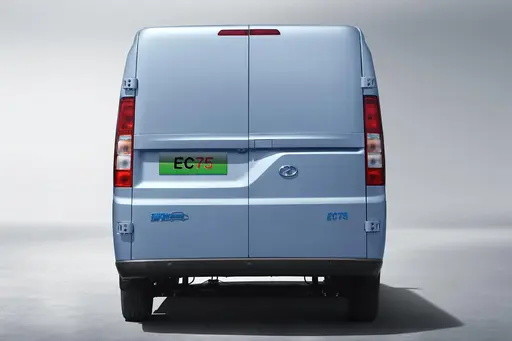

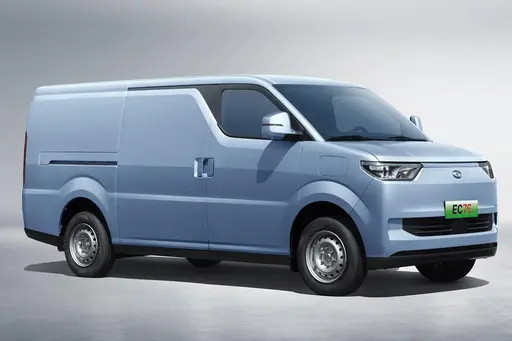

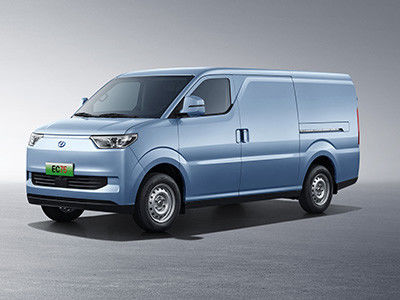

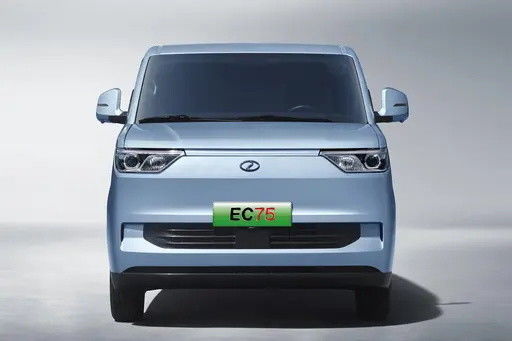

Ruichi EC75 Small Cargo Vans Real Picture
