Product Details:
|
|
| Place of Origin: | Chongqing, China |
|---|---|
| Brand Name: | DFSK |
| Certification: | EEC/COC |
| Model Number: | DFSK C35/C36 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | By Container |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 70000 units per year |
|
Detail Information |
|||
| Product Name: | DFSK C35/C36 | Displacement: | 1.499 |
|---|---|---|---|
| Transmission Type: | 5MT | Emission Standard: | Euro V B+、Euro VI |
| Tire: | 185/80R14 | Fuel Tank: | 55L,metal Fuel Tank |
| Steering Type: | EPS | Drive Mode: | Middle Egine, Rear Drive |
| Speed Ratio: | 43：9 | EFI: | Delphi MT22.3 |
| Highlight: | dongfeng eu certificate vehicles,dongfeng left hand drive truck,dfsk eu certificate vehicles |
||
Product Description
Specification
|
Item
|
L1
|
|
Engine
|
|
|
Engine
|
DK15-06 |
|
Speed Ratio
|
43:9 |
|
Emission Standard
|
Euro V B+,Euro VI |
|
Displacement
|
1.499 |
|
EFI
|
Delphi MT22.3 |
|
Transmission Type
|
5MT |
|
System structure
|
|
|
body type
|
integral body |
|
Drive Mode
|
Middle egine, rear drive |
|
Front Suspension
|
MacPherson Independent Suspension |
|
Rear Suspension
|
Non-independent 5-leaf-spring suspension |
|
brake
|
Front disc and rear drum |
|
Steering Type
|
EPS |
|
clutch type
|
Mechanical |
|
External configuration
|
|
|
tire
|
185/80R14 |
| Wheel Rim | basic:silver steel wheel optional:aluminum wheel |
| Wheel Rim Cover | Wheel Rim Cover(DONGFENG LOGO,SOKOM LOGO is available for steel wheel) |
| wheel nut | basic:galvanized nut optional:chrome plated nut |
|
front/rear bumper
|
the same color |
| grille | Structure: Integral Grille: same color |
| Front/Rear Mudguard |
IA
|
|
Front Headlamp
|
manual height adjustment |
| Front Fog Light |
IA
|
| daytime running light |
IA
|
|
Indicator
|
Yellow light bulb with white shade |
| Wiper | basic:front wiper with bone, without rear wiper optional:front wiper with bone and rear wiper |
| Exterior Rear-View Mirror | basic:Matte black, manual adjustment optional:Matte black,electric adjustment |
| sunroof |
NA
|
|
Outside Handle
|
Nissan black |
| Glass | 2 seats:lift glass for front door , panel for middle side/rear side ,glass for back door 5 seats: lift glass for front door, glass for middle door , panel for rear side,glass for back door |
|
Window Glass Lifter
|
electric front door |
| black film for pillar |
NA
|
|
Outer cut water glue strip
|
Black |
|
Sliding door rail trim
|
Double sliding doors: matte black trim |
|
Rear Headlamp
|
dual fog lights and dual reversing lights |
|
Rear fog light
|
IA |
|
Retro Reflector
|
Independent Retro Reflector |
|
High-Mount Brake Light
|
IA |
|
tail
|
NA |
| Body exterior trim | Front door trim:matte black Fender Exterior Trim: Matte Black Rear headlight trim: black leather pattern D-pillar trim in the same color |
|
Rear license plate light cover
|
Matte black |
| Car Identification | Nameplate:hard model number:C35 Displacement mark: 1.5 DVVT logo:DONGFENG,optional SOKON Rear sign: VAN ESC |
| luggage rack | NA |
| Decal | basic:NA optional:IA |
| Muffler Heat Shield | NA |
| Muffler Cover | NA |
| NA | |
| Engine Decoration | NA |
| Big surrounded | NA |
|
Fuel Tank
|
55L,metal fuel tank |
|
Fuel Tank Opening Mode
|
Key |
|
Internal Configuration
|
|
|
Interior Trim Style
|
Nissan black |
|
Sun Visor
|
dual sun visors without make-up mirror,yellow |
|
Inside Rear-View Mirror
|
Nissan black, adhesive, with anti-glare |
| Dashboard | upper and lower body and combination instrument cover in Nissan black Side air vent in silver Toolbox lock handle and hood handle in Nissan black |
|
Combination instrument
|
white background light,with tachometer |
| Multi-Media System | basic:MP3 optinal:Radio |
|
Speaker
|
2 |
|
Warm air manipulation mechanism
|
Nissan black main body |
|
Cigarette Lighter
|
IA |
|
Ash box
|
IA |
| Steering Wheel | Ordinary, Nissan black + gray brushed trim(DONGFENG Logo,optional SOKON Logo) |
|
adjustable steering wheel
|
NA |
| Upper &Down Cover of Combination Switch | Nissan black |
|
Gear-Shift
|
Nissan black main body |
|
Hand Brake
|
Nissan black |
| Control box + rear cover + cup holder | Nissan black control box, Nissan black shift trim ring, without rear cover and with cup holder (Nissan black) |
| Interior lights (front/middle/rear) | Front reading light, ordinary state, yellow, 1 bulb. Rear interior light: yellow, single switch |
| Front door light switch | basic:NA optional:IA |
| Rear door light switch | basic:NA optional:IA |
|
Welcome light
|
NA |
|
Horn
|
Snail type, high pitch |
| A/C | basic:NA optional:single steam optional:External top steam |
|
Interior trim panels (door/side) |
front door: Nissan black, injection molded interior panel, with triangular trim, middle door: Nissanblack artificial leather, rear side: Nissan black artificial leather, back door: Nissan black artificial leather |
|
Pillar trim
|
A pillar:yellow(with handle) |
|
top roof
|
Hard top, non-woven, yellow |
| Safety Handle | 2 seats: V27 design, yellow, 1 5 seats : V27 design, yellow, 3 |
| Handle (mounted on the pillar) | 2-seater, fabric: M080+M081, seat trim Nissan black 5-seater, 2+3, fabric: M080+M081, seat trim Nissan Black |
| Handrail + crank handle | front door:Nissan black middle door: NA |
| Interior Handle | Front door: handle in matt gray, base in Nissan black Middle door: handle and handle base in Nissan black |
| Locking button + bushing | Front door: matte gray+ red warning strip Middle door: Nissan black |
| Seats | 2 seats, fabric: M080+M081, Nissan black seat trim 5 seats, 2+3, fabric: M080+M081, Nissan black seat trim |
| Front-Row seats | 4-way adjustment for the driver seat and front passenger seat,adjustable headrest, with side trim cover,seat belt latch on the floor |
| Second-Row Seats | 2 seat:NA 5 seats:C37 one-piece extended seat for 3 people, basic headrest;seat belt latch on the floor |
| Third-Row Seats(including forth-row seats) | NA |
|
Seat Hinged Cover
|
NA |
| Safety belts and covers | 2 seates: Nissan Black, Front row: 3-point 5 seates: Nissan Black, Front row: 3-point,normal safe belt Back row: 3+2+3 |
| Floor Mat | Front floor carpet: 1.6 foam (M023 grey lychee pattern) + noise insulation cotton, split type. Engine compartment insulation carpet: 1.6 foam (M023 grey lychee pattern) + EVA Rear floor carpet: 1.6 foam (M023 gray lychee pattern), overmolded + PVC hard floor + EVA |
|
Carpet noise insulation cotton
|
IA |
| Front panel insulation pad/Front cover insulation pad | with front panel insulation pad |
|
Floor Mat
|
Nissan black |
|
Flooring strips/steps
|
Nissan black |
| Storage Boxe | NA |
| Shelf | NA |
|
Security and intelligence
|
|
| Dual aiebags | basic:NA optional:dual airbags |
| Child lock | NA |
| ISOFIX port | NA |
| ABS/EBD | IA |
| Reversing Radar | NA |
| Reversing camera | NA |
| Central Lock | basic:NA optional: mechanical central control for front door, middle door, back door optional:remote control for front door |
| key | basic:normal type(DONGFENG Logo, optional SOKON Logo) optional:remote control |
| Rear defrost | NA |
| Electric doors | NA |
| PEPS system | NA |
| Cruise Control | NA |
| Panoramic parking system | NA |
| GPS navigation system | NA |
| ESP/ESC | IA |
| Immobilizer | NA |
| Body Anti-Theft | NA |
| TPMS | IA |
| ASR/TCS/TRC/ATC | IA |
| EBA/BAS/BA/EVA | IA |
|
Body description
|
|
| Grille/clapboard, window sealing | 2 seats: with grille, panel for middle and rear side , back door with glass 5 seates: with grille, window for middle side , panel for rear side , back door with glass |
|
Others
|
|
|
Visual Standard Parts
|
Green |
"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional,
and "-" - indicates that there is no such configuration;
DFSK C35 Feature
DFSK C35/C36 have a EU Compliance Certificate and is an urban delivery vehicle.
The 80mm widened beam is solid and reliable. 9 horizontal and 2 longitudinal widened girder (80mm) + reinforced body design, more stable and solid.

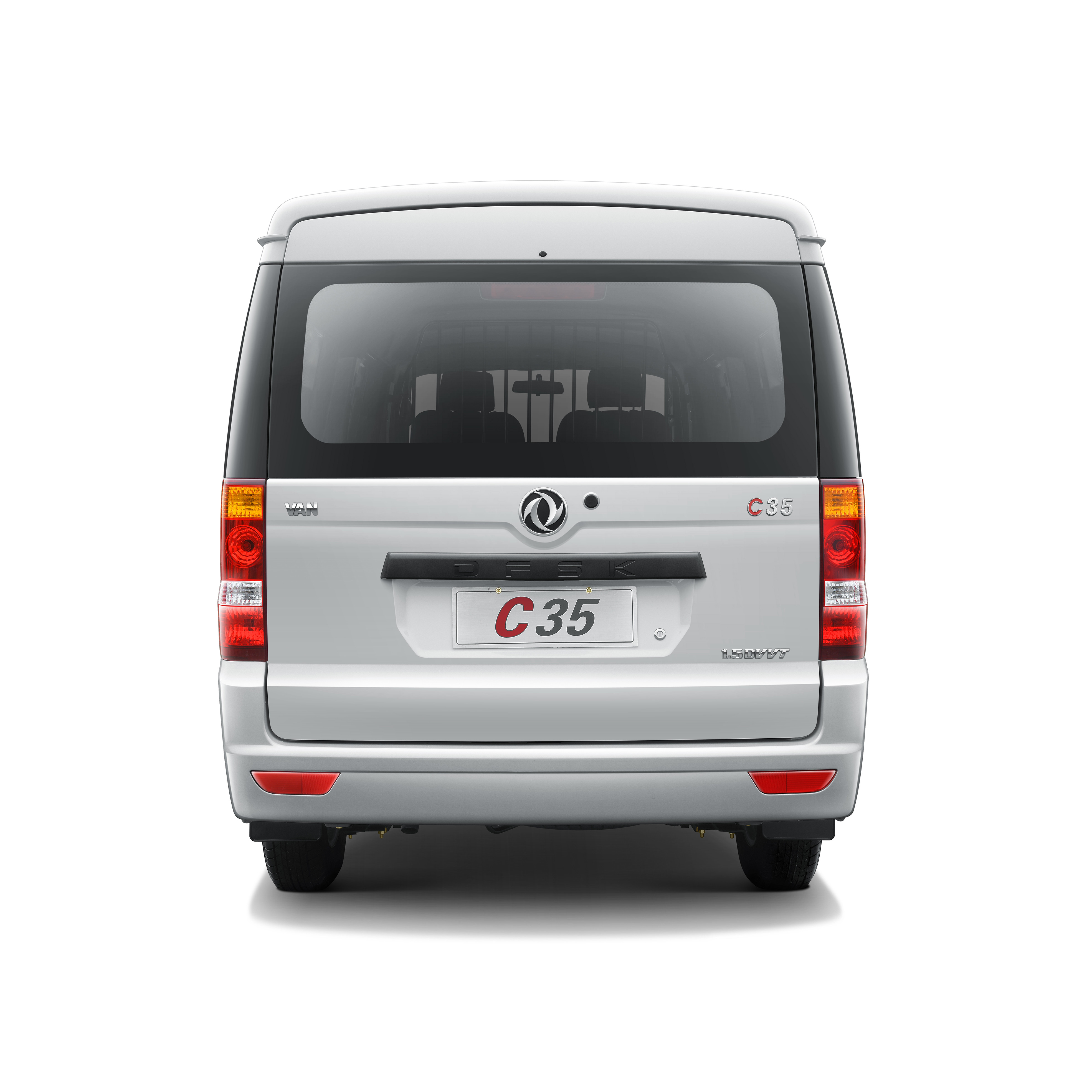

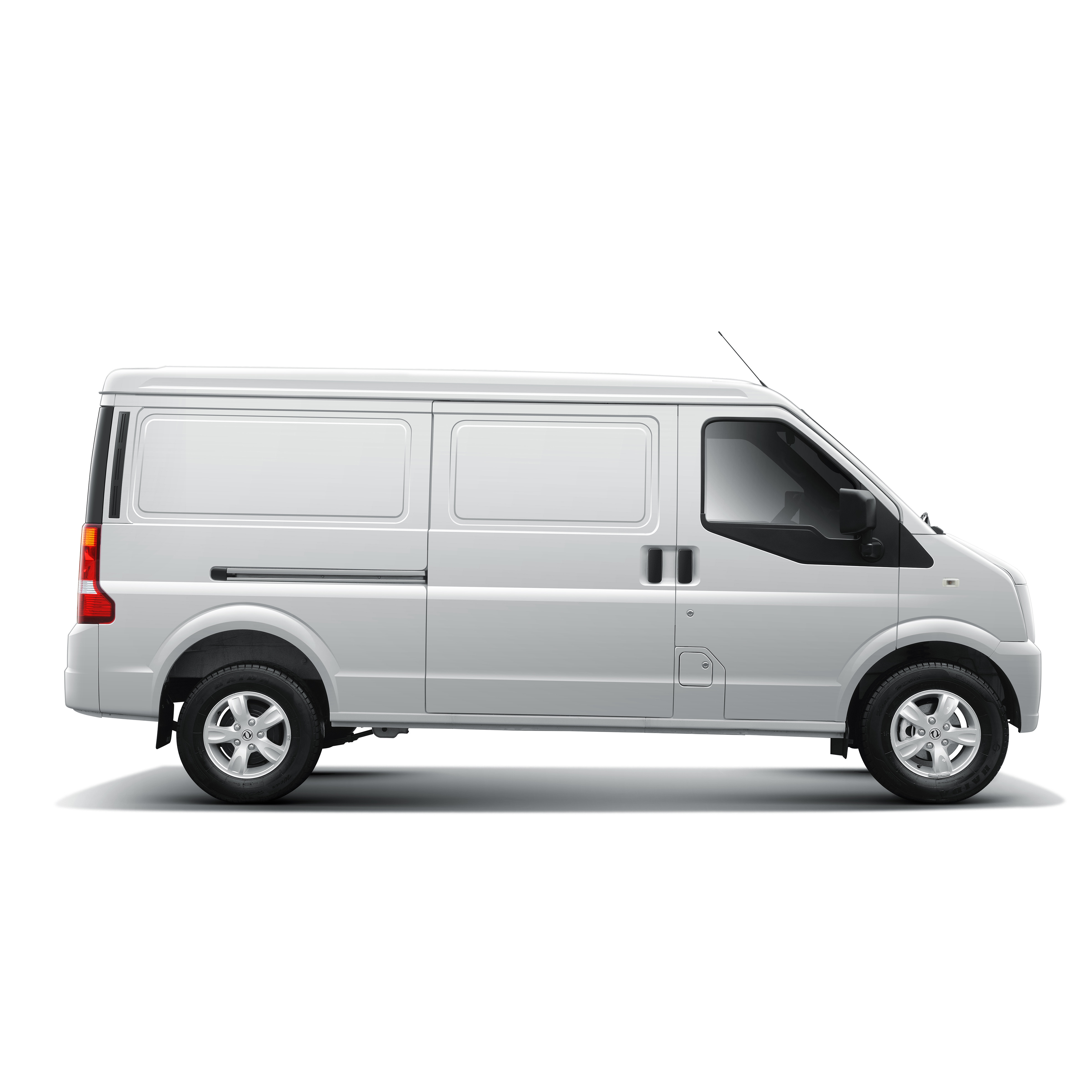

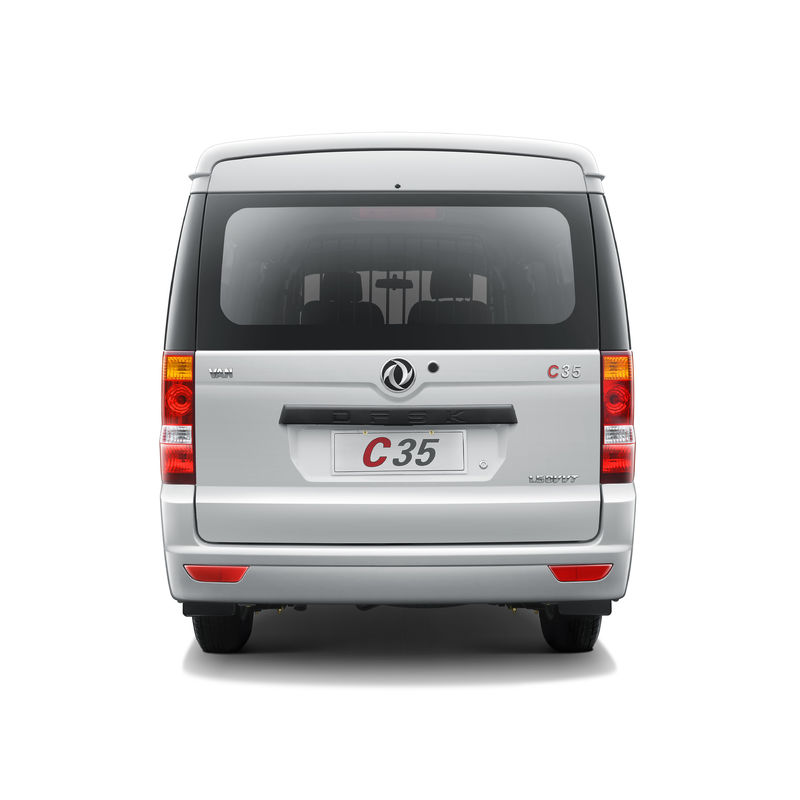

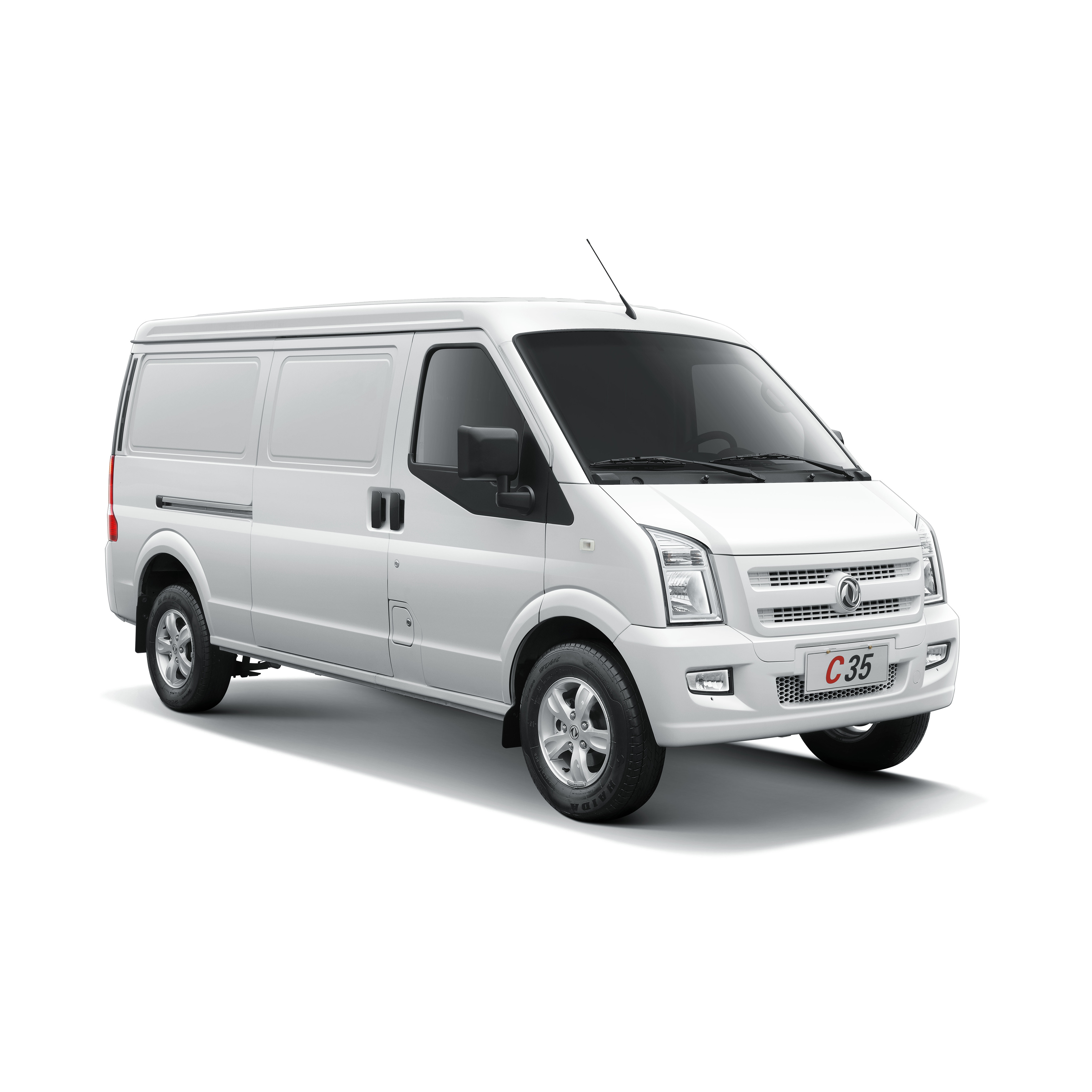

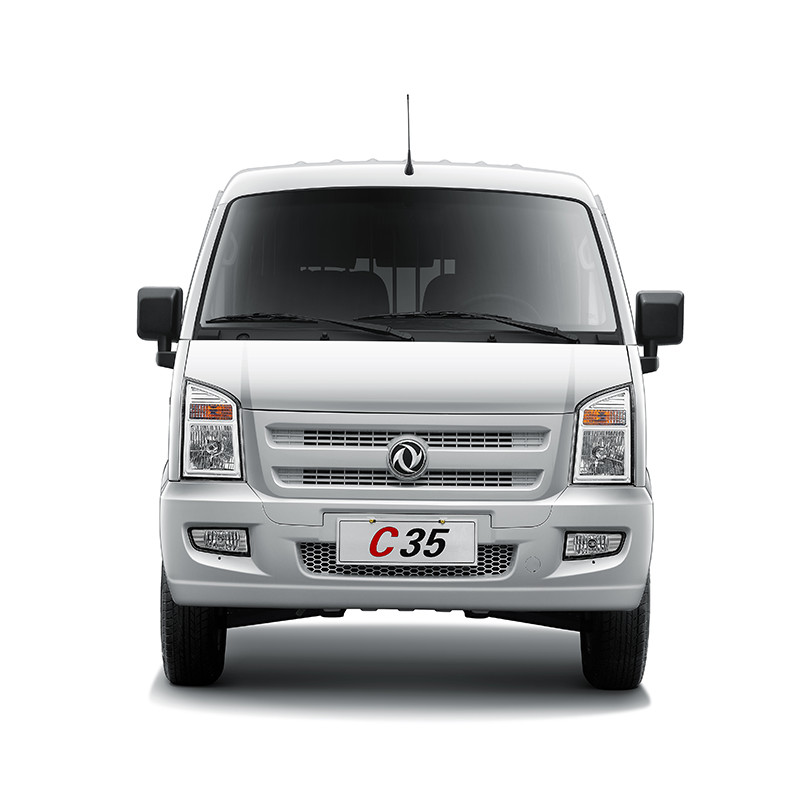

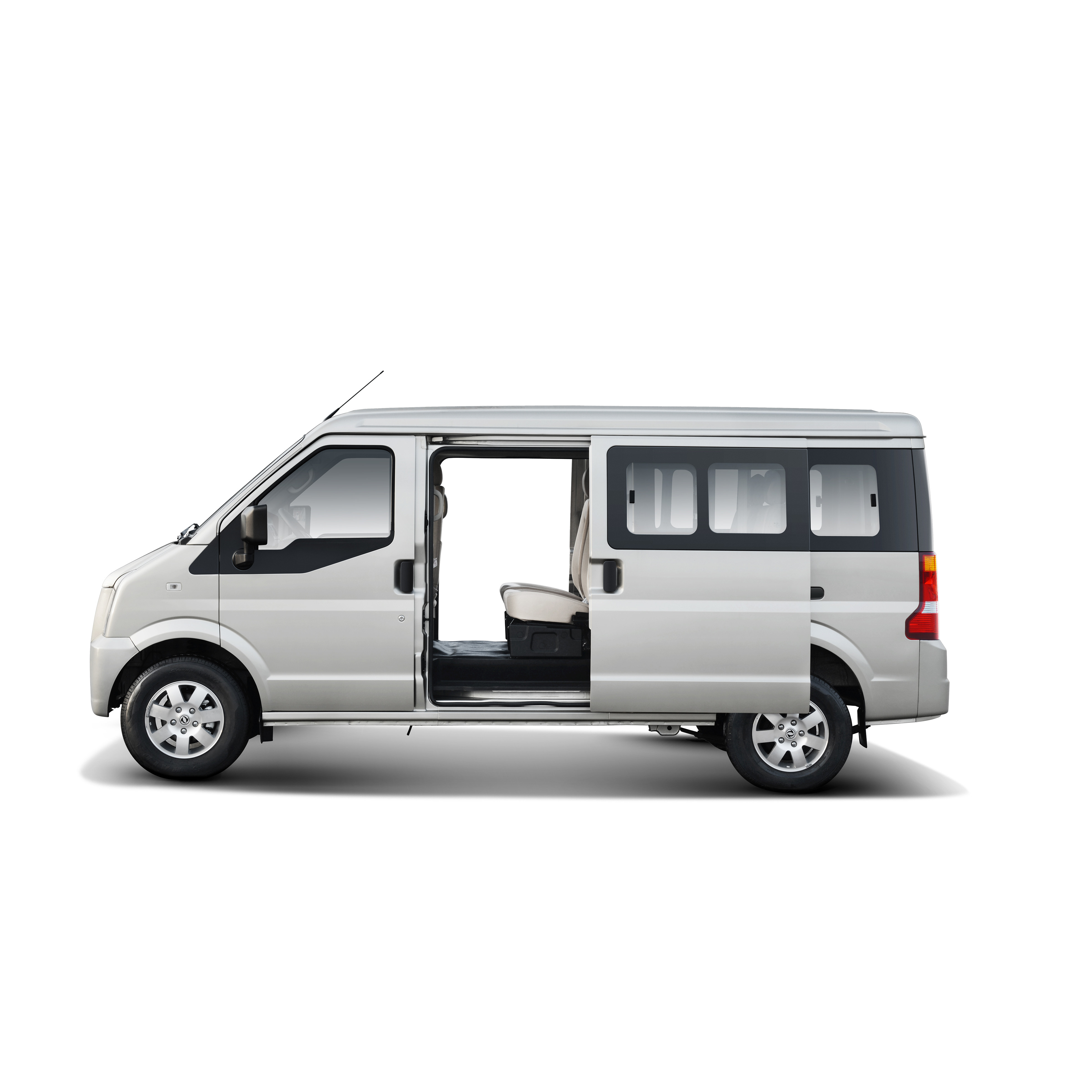

Gallery
