Product Details:
|
|
| Place of Origin: | Chongqing, China |
|---|---|
| Brand Name: | DFSK |
| Certification: | EEC/COC |
| Model Number: | EC31 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | By Container |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 70000 units per year |
|
Detail Information |
|||
| Product Name: | DFSK EC31 | Cargo Size(guardrail, Railing): | 2900×1540×350 Mm |
|---|---|---|---|
| Type: | Electric Mini Truck | Certification: | EEC/COC |
| Steering: | LHD | Max Speed: | 80 Km/h |
| Peak Torque: | 200 N.m | WLTP: | 215 Km |
| Passenger: | 2 | Curb Weight: | 1320 Kg |
| Battery Rated Energy: | 68.7 KW | ||
| Highlight: | dfsk eu certificate vehicles,dfsk left hand drive truck,ec31 eu certificate vehicles |
||
Product Description
EC31 Euro Mini Truck Specification
| Item | L1 | |
| Gotion Single Battery Pack (Lithium Iron Phosphate) Euro-American Standard Battery | ||
| standard | optional | |
|
Basic Parameter |
||
| Length × Width × Height (mm) | Flatbed 4730×1670×1960 |
|
| Wheelbase (mm) | 3050 | |
| Wheel tread (mm) | 1410/1410 | |
| Curb weight (kg) | 1320 | |
| Gross weight kg | 2600 | |
| Acceleration time of 0-50km/h | ＜10 Sec | |
| Acceleration time of 50-80kW/h | ＜15 Sec | |
| Max Speed (km/h) | 80 | |
| Passengers Allowed in Driver's Cabin | 2 | |
|
Electric drive and rear axle |
||
| Motor Type | Permanent Magnet Synchronous Motor | |
| Motor Cooling Method | Water cooling | |
| Rated Power/Peak Power (KW/rpm) | 30/3600—60/9000 | |
| Rated torque / Peak torque(N.m) | 80 /200 | |
| Drive axle speed ratio | 10.5(JIANAN,ZHUOTONG) | |
| Estimated Range【WLTP】 | Max. speed 80:WLTP215km | |
| Voltage | 307.2V | |
| Car charger | 6.6kW | |
| Battery Rated Energy | 38.7kWh | |
| Transmission/Reducer | Single-speed Automatic | |
|
System structure |
||
| Body Type | Short head, Single row, Non-reversible | |
| Drive Mode | Rear egine, rear drive | |
| Front Suspension | MacPherson Independent Suspension | |
| Rear Suspension | Non-independent 6-leaf-spring top mounted suspension | |
| Brake | Front disc and rear drum, dual-circuit hydraulic brake (7+8 dual-film cylinder) | |
| Steering Type | EPS | |
|
External Configuration |
||
| Tire | 185R14LT 8PR | |
| Tire Rim | Silver Steel Wheel, Steel Spare Tire (silver) (5 bolts) | |
| Wheel Cover | Steel wheel decoration cover with DONGFENG Logo | |
| Wheel Nut | Galvanized nuts | |
| Front/Rear Bumper | Body color, black middle grille | |
| Grille | Body color | |
| Front/rear mudguard | IA, without logo | |
| Front combination headlight | New style: electric height adjustment with automatic headlights | |
| Front fog lights | IA | |
| Daytime running lights | IA | |
| Side turn signal | White lamp shade and yellow light bulb | |
| Wiper | Equipped with front bone wiper, no rear wiper | |
| Exterior Rearview Mirror | Standard exterior rearview mirror, the mirror shell is the same color, black mirror base | |
| Sunroof | NA | |
| Outer handle | Horizontal type, black | |
| Full car glass | Electric lift glass for the front door, glass for rear side | |
| Glass lifter | Electric lift | |
| Pillar black film | NA | |
| External cut glue strip | Black | |
| Sliding door/rail decoration | NA | |
| Rear combination lights | Double Reverse Lights & Double Fog Lights, Rear combination light strip | |
| Rear fog lights | Double Reverse Lights & Double Fog Lights, Rear combination light strip | |
| Retro reflector | Rear combination light strip | |
| High Mounted Stop Lamp | NA | |
| Reflective Logo | NA | |
| Car Spoiler | NA | |
| Exterior decoration | NA | |
| Rear license plate lamp cover | NA | |
| Full Vehicle Logo | Front logo:DFSK LOGO Nameplate:soft Model number:DFSK EC31 Chrome plated |
|
| Luggage rack | NA | |
| External spray pattern decoration | Customizable | |
| Side protection plate for battery pack | NA | |
| Motor protective cover | NA | |
| Big surrounded | NA | |
“●”——Indicates that this configuration is available, “○”——Indicates that this configuration is optional,
“-”——Indicates that this configuration is not available

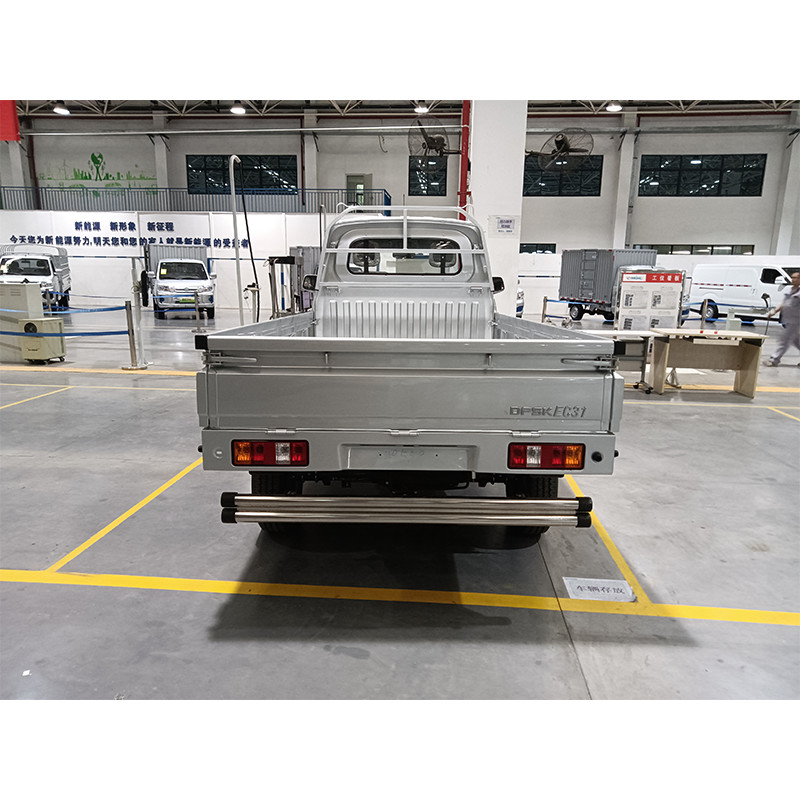

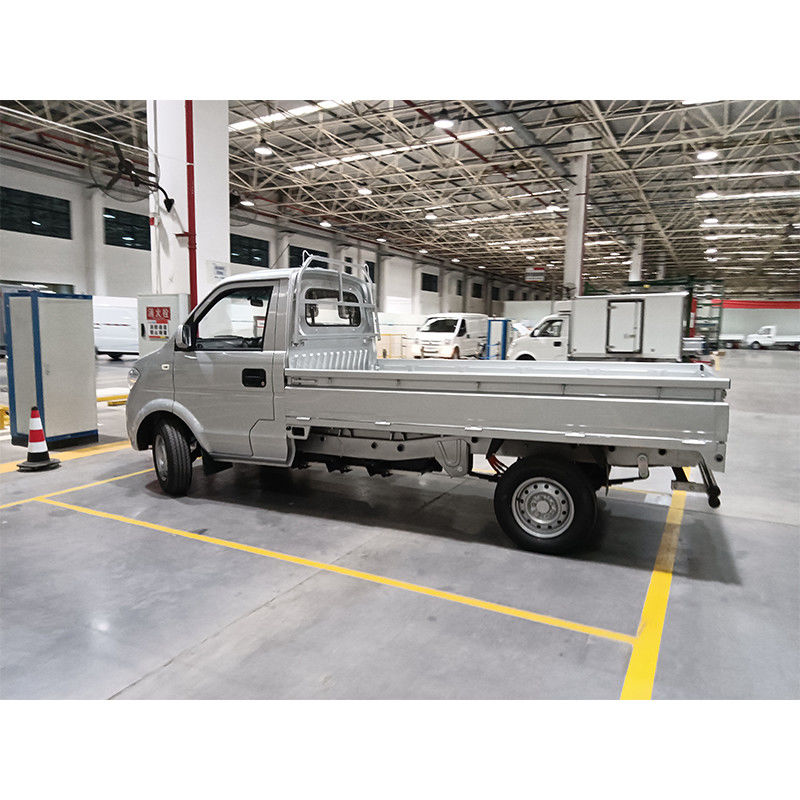

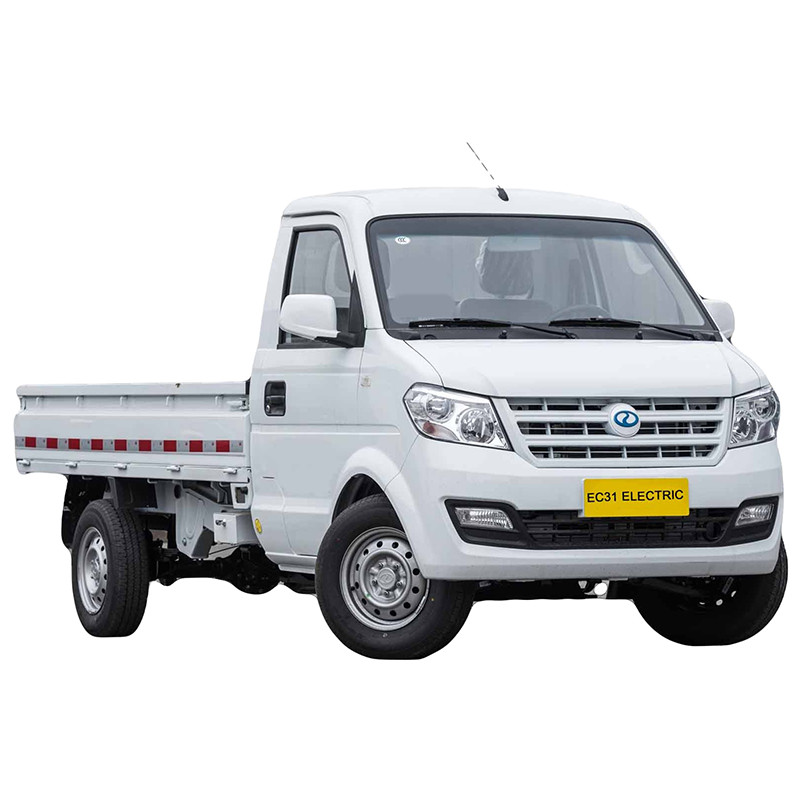

DFSK EC31 EV Tiny Electric Truck Picture
DFSK EC31 Electric Small Flatbed Truck Large Cargo Space, Cargo size is 4730*1670*1960
DFSK EC31 Small Electric Trucks 275km Mile Range Per Charging
DFSK EC31 Small Electric Trucks Fast Charging, Approved for Fast Charging,90 mins
Certification
Facotry
