Detail Information
Product Description

Detail Information
Product Name:	DFSK C32	Displacement:	1.499
Transmission Type:	5MT	Emission Standard:	Europe Ⅵ
Tire Model:	185 R14LT 8PR（European Standard）	Steering Type:	EPS
Body Type:	Semi-Loaded Body, Reinforced Longitudinal Beam	Seats:	5
Interior Trim Style:	Balck	Fuel Tank:	55L
Highlight:	diesel kei truck 55l , dfsk c32 double cabin mini truck , e mark certification diesel kei truck

Product Description

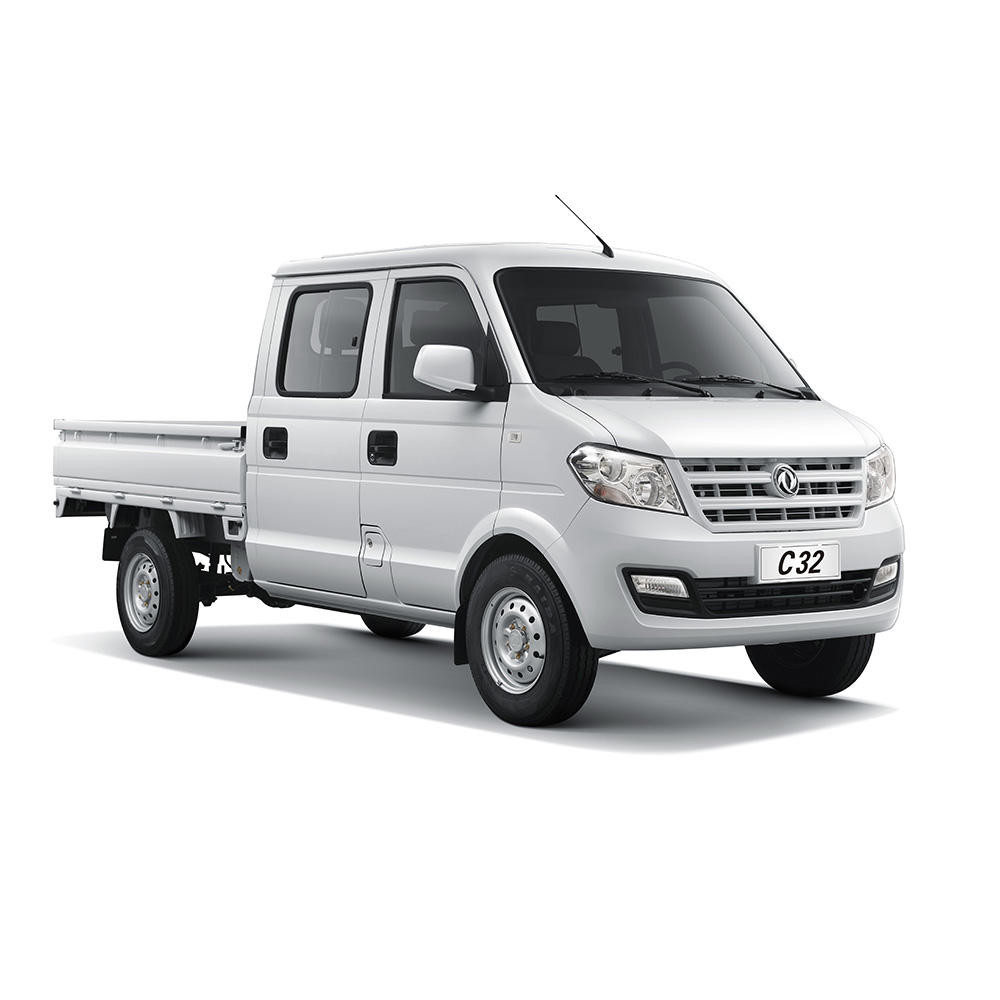

E-Mark Certification Automotive DFSK C32 Double Cabin Mini Truck

Specification

Item	Basic I L1	Standard I L2
Engine and rear axle
Engine	DK15-06	DK15C
Speed Ratio	Tubular Rear Axle(43/9)	Tubular Rear Axle(43/9)
Emission Standard	Europe Ⅵ	China Ⅵ
Displacement	1.499	1.498L
Efi	Delphi MT22.1	Delphi MT62
Transmission Type	5MT	5 MT
System structure
Body Type	Semi-Loaded Body, Reinforced Longitudinal Beam	Semi-Loaded Body, Reinforced Longitudinal Beam
Drive Mode	Mid-Engine, Rear-Drive	Mid-Engine, Rear-Drive
Front Suspension	Mcpherson Independent Suspension	Mcpherson Independent Suspension
Rear Suspension	Non-Independent Suspension With 6-Bar Leaf Spring Type, Top-Mounted Leaf Spring	Non-Independent Suspension With 6-Bar Leaf Spring Type, Top-Mounted Leaf Spring
Brake Type	Front-Disc Rear Drum, Dual Circuit Hydraulic Brake；7+8 Double Membranes Vacuum Booster	Front-Disc Rear Drum, Dual Circuit Hydraulic Brake；7+8 Double Membranes Vacuum Booster
Steering Type	EPS	EPS
Clutch Type	Mechanic	Mechanic
External configuration
Tire Model	185 R14LT 8PR(European Standard)	185 R14LT 8PR(European Standard)
Wheel Rim	silver steel wheel, steel spare tire (silver)	silver steel wheel, steel spare tire (black)
Wheel Rim Cover	Wheel hub center cover(DONGFENG logo,optional SOKON logo)	Steel Wheel Decorative Cover(DONGFENG logo,optional SOKON logo)
Wheel Nut	basic:galvanized nut optional:chrome plated nut(only applicable for TV03)	galvanized nut
Front/Rear Bumper	body color, black for middle grille	body color, black for middle grille
Grille	body color(C27 new shape)	body color(C27 new shape)
Front/Rear Mudguard	IA	IA
Front Headlamp	electric height adjustment	electric height adjustment
Front Fog Light	IA	IA
Daytime Running Light	IA	IA
Indicator	Yellow light bulb with white shade	Yellow light bulb with white shade
Wiper	Front wiper with bone, without rear wiper	Front wiper with bone, without rear wiper
Exterior Rear-View Mirror	Standard Exterior Rear-View Mirror, mirror housing in body color, mirror base in black	Standard Exterior Rear-View Mirror, mirror housing in body color, mirror base in black
Outside Handle	black	black
Glass	lift glass for front door, sliding window for middle door	lift glass for front door, sliding window for middle door
Window Glass Lifter	basic; manual front and middle door optional: electric front door,manual middle door	basic; manual front and middle door optional: electric front door,manual middle door
Pillar Black Film	NA	NA
Outer Cut Water Glue Strip	black	black
Rear Headlamp	Double reversing lights, rear combination light strip	Double reversing lights, rear combination light strip
Rear Fog Light	Double fog lights, rear combination light strip	Double fog lights, rear combination light strip
Retro Reflector	Non-independent, rear combination light strip	Non-independent, rear combination light strip
High-Mount Brake Light	basic: NA optional: IA	NA
Light Cover of Rear License Plate	NA	NA
Logo	front logo:DONGFENG,optional SOKON Nameplate:hard logo rear mark:C32 ESC mark	front logo:DONGFENG,optional SOKON Nameplate:for European standard Model number:C32
Luggage Rack	NA	NA
Decal	basic: Decal for back: Logo + DFSK optional:Decal for back: Logo + DFSK Decal for body	Decal for back: Logo + DFSK
Muffler Heat Shield	NA	NA
Muffler Cover	NA	NA
Engine Cover	NA	NA
Engine Decoration	NA	NA
Big Surrounded	NA	NA
Fuel Tank	55L	50L
Fuel Tank Opening Mode	Key	Key
Internal Configuration
Interior Trim Style	balck	balck
Sun Visor	Gray, double sun visors (standard type),front passenger seat with make-up mirror	Gray, double sun visors (standard type),front passenger seat with make-up mirror
Interior Rear-View Mirror	Basic: basic type, gray (from K07) Optional: anti-dazzle interior rear-view mirror, black	Basic: basic type, gray (from K07) Optional: anti-dazzle interior rear-view mirror, black
Dashboard	V29 Boutique dashboard Nissan black main body	V29 Boutique dashboard Nissan black main body
Combination Instrument	Digital(new shape), without door open reminder	Digital(new shape), without door open reminder
Multi-Media System	MP3 optional: MP5	MP3
Speaker	2	2
Warm Air Manipulation Mechanism	Knob	Knob
Steering Wheel	Basic: normal steering wheel(Dongfeng logo, optional SOKON logo) Optional: multifunction steering wheel with airbag	Basic: normal steering wheel(Dongfeng logo, optional SOKON logo) Optional: multifunction steering wheel with airbag
Adjustable Steering Wheel	NA	NA
Combination Switch And Cover	Nissan black	Nissan black
Gear-Shift	Nissan black main body	Nissan black main body
Hand Brake	Nissan black	Nissan black
Control Box + Rear Cover + Cup Holder	Nissan black, with cup holder	Nissan black, with cup holder
Central Armrest	NA	NA
Interior Lights (Front/Middle/Rear)	Integrated front reading light and interior view mirror	Integrated front reading light and interior view mirror
Front Door Light Switch	basic:NA optional:IA	basic:NA optional:IA
Rear Door Light Switch	basic:NA optional:IA	basic:NA optional:IA
Welcome Light	NA	NA
Horn	Basin type	Basin type
A/C	basic:NA optional:single steam optional: double-steam(only applicable for TV03)	basic:NA optional:single steam
Interior Trim Panels (Door/Side)	Basic : front door: with fire retardant foam, standard heat bonding line, Nissan black artificial leather, Optional : front door: injection molded interior panel, Nissan black body, brushed metal armrest cover, with front door triangle trim; middle door:front door: with fire retardant foam, standard heat bonding line, Nissan black artificial leather	Basic : front door: with fire retardant foam, standard heat bonding line, Nissan black artificial leather, Optional : front door: injection molded interior panel, Nissan black body, brushed metal armrest cover, with front door triangle trim; middle door:front door: with fire retardant foam, standard heat bonding line, Nissan black artificial leather
Pillar Trim	A-pillar trim: Gray	A-pillar trim: Gray
Top Roof	Hard top, non-woven, gray	Hard top, non-woven, gray
Safety Handle	3, gray(V29)	3, gray(V29)
Handle (Mounted On The Pillar)	NA	NA
Handrail + Crank Handle	Basic: Nissan black, same as V22 Optional: Nissan black, interior panel with its own armrest	Basic: Nissan black, same as V22 Optional: Nissan black, interior panel with its own armrest
Interior Handle	Basic: Front and middle door: Nissan black, same as V22 Optional: Front door: Nissan black (chrome handle), same as V22,middle door: Nissan black, same as V22	Basic: Front and middle door: Nissan black, same as V22 Optional: Front door: Nissan black (chrome handle), same as V22,middle door: Nissan black, same as V22
Locking Button + Bushing	Basic: Front and middle door: Nissan black Optional: Front door: chrome + red warning strip,middle door: Nissan black	Basic: Front and middle door: Nissan black Optional: Front door: chrome + red warning strip,middle door: Nissan black
Seats	basic: fabric( cloth ):M085=M085+M086 optional: fabric( leather ):K033=P028+P029(only applicable for TV03)	fabric:M085+M086
Front-Row Seats	new shape seats, 4-way adjustment for driver seat and front passenger seat , adjustable headrest , seat belt lock on the floor	new shape seats, 4-way adjustment for driver seat and front passenger seat , adjustable headrest , seat belt lock on the floor
Second-Row Seats	one-piece seat for 3 people, with headrest	one-piece seat for 3 people, with headrest
Seat Hinged Cover	NA	NA
Safety Belt	Nissan black, normal type front row:3+3, rear row:3+2+3,	Nissan black, normal type front row:3+3, rear row:3+2+3,
Floor Mat	Cabin carpet: gray lychee pattern, M023: 1.6mm foam engine compartment insulation carpet:gray lychee pattern, M023: 1.6mm foam rear floor carpet: gray lychee pattern, M023: 1.6mm foam, rear floor is not wrapped	Cabin carpet: gray lychee pattern, M023: 1.6mm foam engine compartment insulation carpet:gray lychee pattern, M023: 1.6mm foam rear floor carpet: gray lychee pattern, M023: 1.6mm foam, rear floor is not wrapped
Carpet Noise Insulation Cotton	NA	NA
Front Panel Heat Insulation Pad	IA	IA
Floor Mat	Nissan black	Nissan black
Flooring Strips/Steps	Nissan black	Nissan black
Ash Box	IA	IA
Cigarette Lighter	IA	IA
Security and intelligence
Air Bag	basic:NA optional:double airbags	basic:NA optional:double airbags
Child Lock	basic:NA optional:child lock in back door(only applicable for TV03)	basic:NA optional:IA
ISOFIX	NA	NA
Immobilizer	NA	NA
ABS/EBD	IA	IA
Reversing Radar	NA	NA
Reversing Camera	basic:NA optional:IA	NA
Central Lock	basic:NA optional:Front door with mechanical central control optional:Front door with remote central control	basic:NA optional:Front door with mechanical central control optional:Front door with remote central control
Key	basic:integrated key(Dongfeng logo, optional SOKON logo) optional: optional remote control(1 remote control key + 1 normal key, Dongfeng logo, optional SOKON logo)	basic:integrated key(Dongfeng logo, optional SOKON logo) optional: optional remote control(1 remote control key + 1 normal key, Dongfeng logo, optional SOKON logo)
ESP/ESC	IA	NA
Body Anti-Theft	NA	NA
TPMS	IA	IA
ASR/TCS/TRC/ATC	NA	NA
EBA/BAS/BA/EVA	IA	NA
Body description
Cargo Type	Basic: 2.3m cargo box, without rear fence and lift rail Optional: 2.3m cargo box with rear fence Optional: 2.1m cargo box with rear fence	Basic: 2.3m cargo box, without rear fence and lift rail Optional: 2.3m cargo box with rear fence
Guard Bar For Rear Side Window Glass	IA	IA
Rear Metal Bumper	IA	IA
Tool Box	NA	NA
Others
Battery Mounting Pressure Plate	NA	NA
Visible Standard Parts	Color zinc	Color zinc
Muffier	Same as V22 (extended)	Same as V22 (extended)
Engine Throttle	Electronic	Electronic

"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional,

and "-" - indicates that there is no such configuration;

DFSK C32 Feature

DFSK C31/C32 mini truck for sale with Super power engine

Equipped with a 1.5-liter DK15 engine

The strongest power in its class, equipped with Dongfeng's top DK15 all-aluminum engine, with 112 horsepower and a peak torque of 147.5N.m, it can transport goods and loads as you like.

DFSK C31/C32 small truck Extra-large space with 2.9m long cargo box

C31 cargo box:The length and width reach 2900mmx1540mm.

C32 cargo box:The length and width reach 2260mmx1540mm.

Super load-bearing Served with 8 sorghum sticks 6-piece upper leaf spring suspension

The frame adopts the superposition structure of main and auxiliary beams, and the reinforced beams in the bearing area are increased to 8, which has a stronger bearing capacity. The suspension adopts 6 leaf spring design, the thickness of the steel plate is 59.5mm, through 700,000 fatigue tests, the bearing capacity is increased by 30%, while the leaf spring suspension adopts an upward design, placed on the rear axle shell, the ground clearance is improved, and the passing performance is better. ABS/EBD safety control system, easy to control, stable as ever, make driving safer.

DFSK C31/C32 mini truck 0 mileage,brand new small cargo truck.
