Product Name:	DFSK EC31 Flatbed Mini Truck	Type:	EV Small Truck
Exterior Dimension (mm):	4730×1635×1985	Fuel:	New Energy
Cargo Size(guardrail, Railing):	2900×1540×350 Mm	Battery Capacity:	38.7 KWh
Power:	60 KW	Fast Charing:	0.6 H
Max Speed:	80 Km/h	Peak Torque:	200 N.m
Highlight:	Mini Electric Vans and Trucks , Electric Vans and Trucks 38.7kWh , 275km EV Small Truck

Product Description

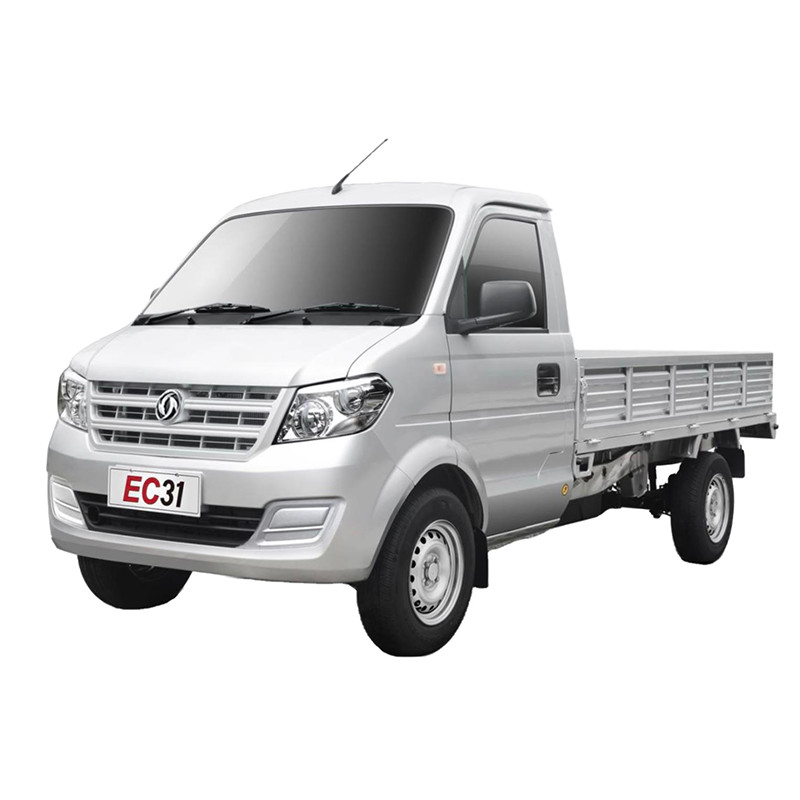

DFSK Mini Electric Truck Endurance Range 275km EC31 EV Small Truck Flatbed

EC31 EV Small Flatbed Truck Specification

Model	EC31 Small Flatbed Truck
Basic Parameter
Size (mm)	473016701960
Wheelbase (mm)	3050
Wheel tread (mm)	1410/1410
Curb weight (kg)	1320
Gross weight (kg)	2600
Acceleration time of 0-50 km/h	＜10 Sec
Acceleration time of 50-80 kW/h	＜10 Sec
Max speed (km/h)	80
Seater	2
Electric Drive and Rear Axle
Motor Type	Permanent Magnet Synchronous Motor
Rated Power (kW/rpm)	30/3600-60/9000
Rated Torque (N.m)	80/200
Estimated Range (WLTP)	215 km
Battery Rated Energy	38.7kWh
Transmission/Reducer	Single-spped Automatic
External Configuration
Tire	185R14LT 8PR
Tire Rim	Silver Steel Wheel, Steel Spare Tire (silver) (5 bolts)
Wheel Cover	Steel wheel decoration cover with DONGFENG Logo
Front/Rear Bumper	Body color, black middle grille
Front combination headlight	New style: electric height adjustment with automatic headlights
Front fog lights	●
Daytime running lights	●
Side turn signal	White lamp shade and yellow light bulb
Full car glass	Electric lift glass for the front door, glass for rear side
Glass lifter	Electric lift
Rear combination lights	Double Reverse Lights & Double Fog Lights, Rear combination light strip
External spray pattern decoration	Customizable
Internal configuration
interior style	Black interior
Inside rearview mirror	Double visors,front passenger seat with make-up mirrior
Audio-visual system	MP5 with DAB,Multilingual (only MP5 function available, no information of electric vehicles)
Air Conditioning	Single steam
Shift control mechanism	Knob type (SOKON Logo)
Description of seats	New design, Semi-enclosed cushion, fabric:M085+M086
Seat belt and cover	Nissan Black, front seat: 3 points, back row: NA
System Structure
Body Type	Short head, Single row, Non-reversible
Drive Mode	Rear egine, rear drive
Steering Type	EPS
Front Suspension	Mac pherson independent suspension
Rear Suspension	Non-independent 6-leaf-spring top mounted
Security, Intelligence
Airbag	Airbag for driver seat
Reversing video image	MP5 has reversing image
Central control	Front door with remote central control
Reversing radar	NA
ABS anti-lock braking	●
Manual air conditioning	●
Spare wheel	●
Vehicle tools	○
Charging gun	○
Tire pressure monitoring system (TPM)	●
Slow charge	European standard fast and slow charging integrated, European standard charging port
Fast charge	European standard fast and slow charging integrated, European standard charging port
Body description
Cargo box (guardrail, railing)	2.9m square tube cargo box (Inner size: 2900×1540×350)
Others
Visual standard parts (including the visual range with five doors and one cover open)	Environmentally friendly

"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional

and “-”——Indicates that this configuration is not available

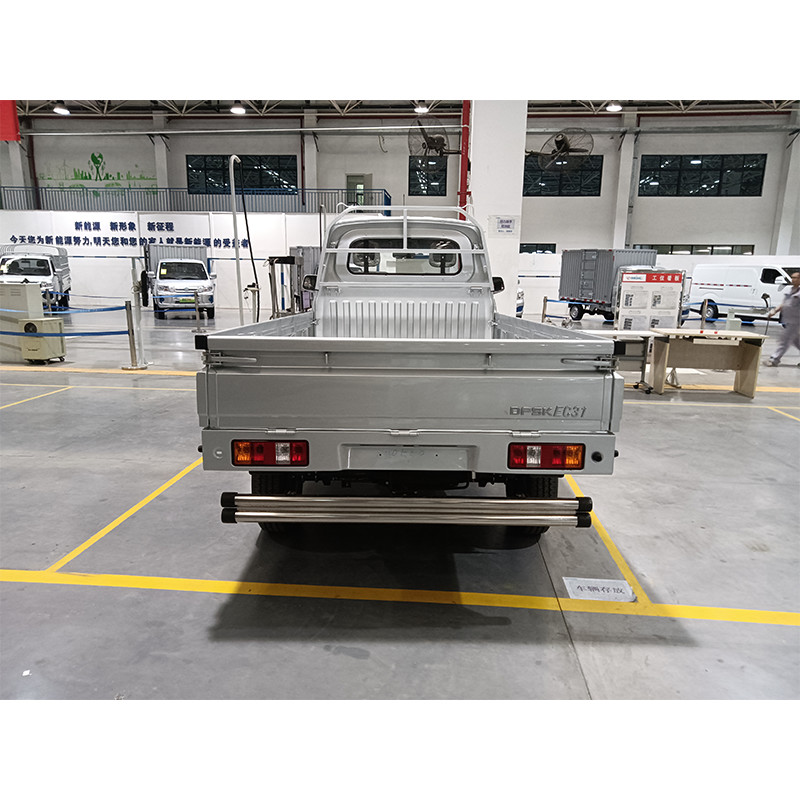

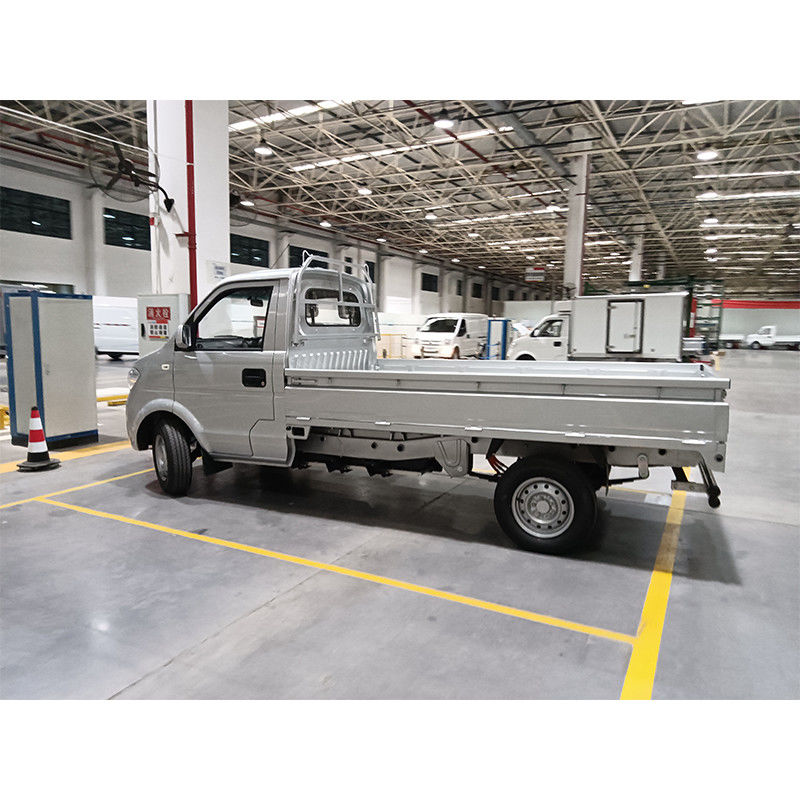

EC31 EV Small Flatbed Truck Features

DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed 0

DFSK EC31 Electric Small Flatbed Truck Large Cargo Space, Cargo size is 4730*1670*1960

DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed 1

DFSK EC31 Small Electric Trucks 275km Mile Range Per Charging

DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed 2

DFSK EC31 Small Electric Trucks Fast Charging, Approved for Fast Charging,90 mins

DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed 3

Certification

DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed 4

Facotry

Tag:

Product Details:
Place of Origin:	Chongqing, China
Brand Name:	DFSK
Model Number:	EC31
Payment & Shipping Terms:
Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	By Container
Delivery Time:	10-15 working days
Payment Terms:	L/C, T/T
Supply Ability:	90000 units per year
