Home ProductsVans And TrucksRuichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck
Ruichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck
Ruichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck Ruichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck Ruichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck Ruichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck Ruichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck Ruichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck

Ruichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck

Product Details:
Place of Origin: Chongqing, China
Brand Name: Ruichi
Model Number: EC71L
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: By Container
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T
Supply Ability: 80000 units per year
Contact Now
  • Detail Information
  • Product Description

Detail Information
Product Name: Ruichi Type: Refrigerated Cargo Trucks
Refrigeration Temperature (℃): -20~12 Size: 5655*1805/1840*2475 Mm
Cargo Size: 3240*1625*1440 Mm Number Of Seat: 2
Wheelbase: 3360 Mm Max Speed: 80 Km/hour
Battery Capacity: 50.28 Kwh Cargo Compartment Volume: 7.5 M³
Highlight:

50.38 KWh Battery Cargo Truck

,

270km Range Cargo Truck

,

Ruichi EC71L Cargo Truck

Product Description

Ruichi EC71L Freezer Cargo Truck

Specifiction



Models EC71L
Refrigerated Truck
Configuration Long battery life version

Basic parameters


L*W*H(MM) 5655×1805/1840×2475
Refrigeration temperature (℃) -20~12

Body


Cargo Size(MM) 3240×1625×1440
Curb weight(kg) 1930
Rated load weight (kg) 1240
Number of Doors 2
Number of Seats 2
Rated load mass (kg) 1240
Van cargo volume (m³) 7.6

Engine


Motor type Permanent magnet synchronous motor
Maximum power (kW) 70
Maximum torque (N.m) 230
Battery Type Lithium Iron Phosphate
Power battery capacity (kWh) 50.38
Operating mileage (CLTC) 270

Chassis steering


Drive mode Rear-mounted rear-wheel drive
Front suspension type Longitudinal leaf spring non-independent suspension
Rear suspension type Longitudinal leaf spring non-independent suspension
Assist type Electronic Assist System (EPS)
Body structure Load-bearing body

Wheel braking


Front brake type Disc brakes
Rear brake type Drum brakes
Type of parking brake Mechanical
Front tire specifications 195/70R15LT 12PR
Rear tire specifications 195/70R15LT 12PR

Active/passive safety gear


Passive pedestrian protection safety belt
Seat belt is not fastened ●
ABS anti-lock braking ●
Braking force distribution (EBD/CBC, etc.) ●
Reversing radar ●

External/anti-theft configuration


Central locking in the car ●
Front/rear power windows Front
Remote key fob ●

Multimedia configuration


Radio (with MP3) ●
Large color screen in the central control 〇
Reversing video 〇
Number of speakers 2

Lighting configuration


Headlights halogen
The headlights are height-adjustable ●

Seat configuration


Seat material fabric
The main driver's seat is adjusted Front and rear adjustment + backrest adjustment
Passenger seat adjustment form Backrest adjustment

Air conditioning


Air conditioner temperature control mode ●Manual



"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional, and "-" - indicates that there is no such configuration;



Features



The cockpit of the 2024 Ruichi EC71L refrigerated truck adopts a two-door and two-seat layout, providing 15-inch rims, seat front and rear/backrest adjustment, manual air conditioning, electric windows, parking radar, ABS anti-lock, brake force distribution, etc., and optional central control color large screen and reversing image.


In terms of size, the length, width and height of the van model are 5625*1805/1840*2495 mm, and the wheelbase of the model is 3360 mm.


The 2024 Ruichi EC71L refrigerated truck adopts a rear-mounted rear-wheel drive form, and all models are equipped with a drive motor with a maximum power of 70 kilowatts and a peak torque of 230 Nm. In terms of suspension, the car is equipped with a front McPherson independent suspension and a longitudinal leaf spring non-independent rear suspension.


The 2024 Ruichi EC71L refrigerated truck matches a 50.38 kWh lithium iron phosphate battery pack, corresponding to a CLTC range of 270km.



Pictures

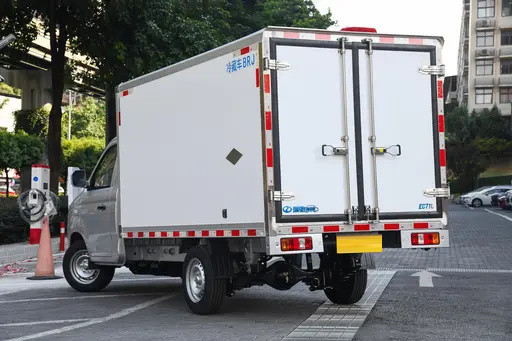

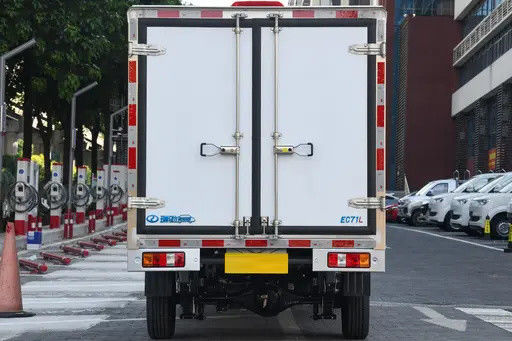

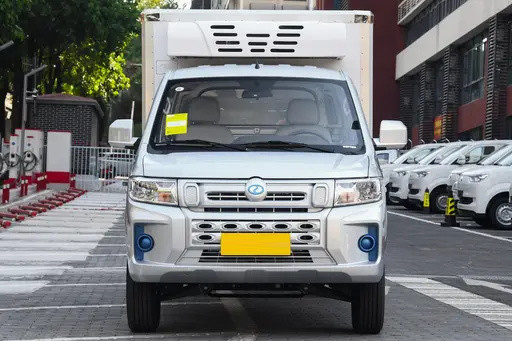

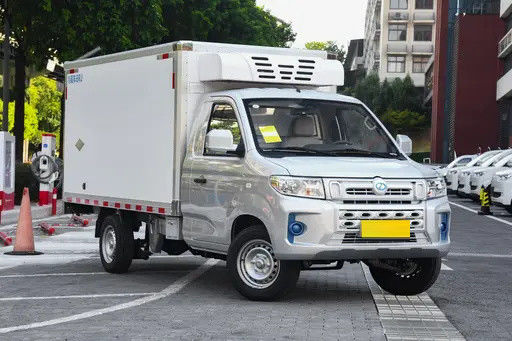

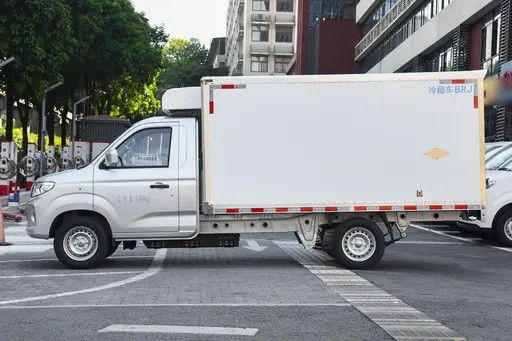

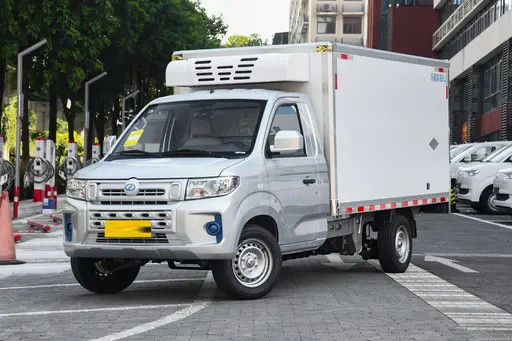

Ruichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck 0

Ruichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck 1

Ruichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck 2

Ruichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck 3
