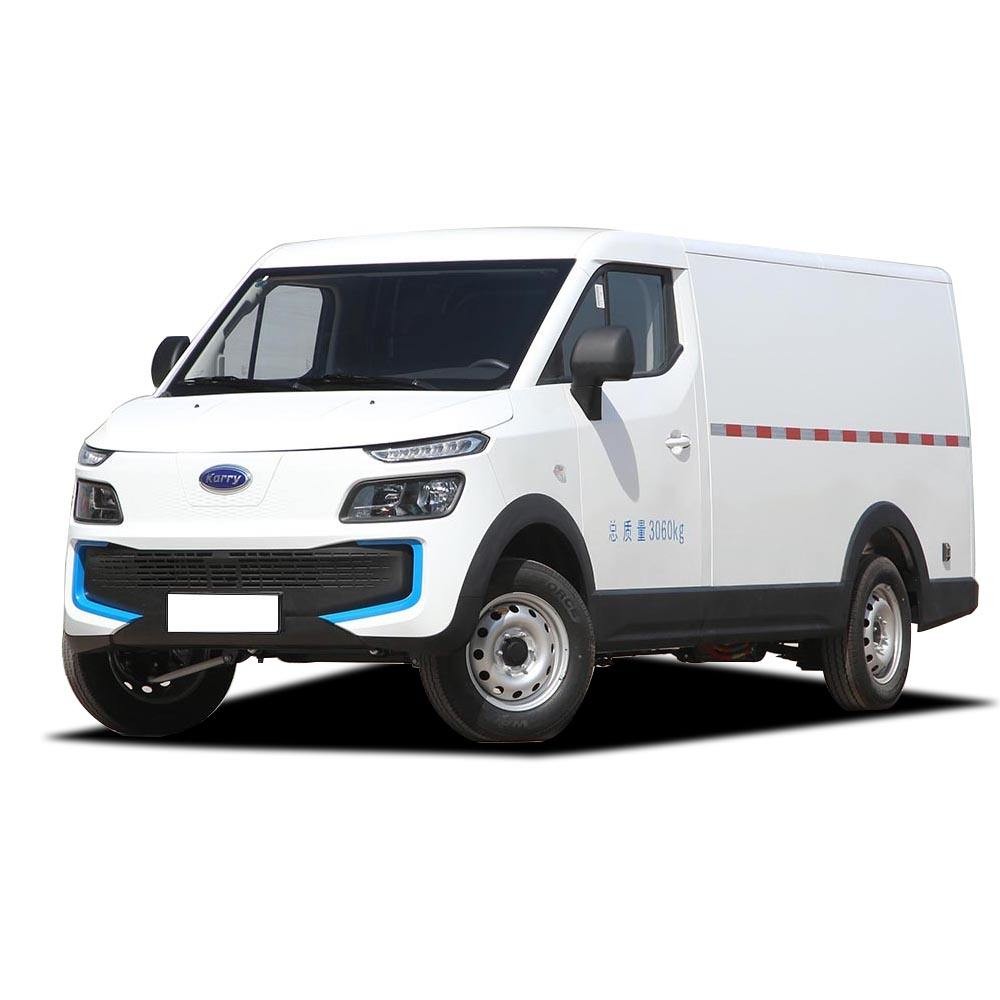

Name: Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use
Brand: Chizhong(Chongqing) lmp.& Exp.Co.,Ltd.
SKU: Karry Dolphin
Price: 388.00 USD
Availability: InStock

Detail Information
Product Description

Detail Information
Product Name:	Karry Dolphin	Size:	545718502046 Mm
Type:	Van	Number Of Door:	5
Number Of Seat:	2	Wheelbase:	3380 Mm
Fast Charging:	0.5 Hour	Max Speed:	80 Km/hour
Battery Capacity:	41.86/43.5 Kwh	Wheelbase (front/rear):	1624/1624 Mm
Cargo Compartment Volume:	7.5 M³
Highlight:	5 Doors Electric Logistics Minivan , Urban Transport Electric Logistics Minivan , 2 Seats Electric Logistics Minivan

Product Description

Karry Automobile Dolphin Ev New Energy Electric Vehicle Five Door Two Seat Truck Logistics Vehicle Minivan Household Truck

Specifiction

Announcement Model	SQR5037XXYBEVH12	SQR5035XXYBEVH12
■ Model	Economy Edition	Wealth Edition
■ Basic parameters
Length × width × height mm	5457×1850×2046	5457×1850×2046
Wheelbase mm	3380	3380
Cargo compartment length × width × height mm	2980×1730,1742×1425,1435	2980×1730,1742×1425,1435
Wheelbase (front/rear) mm	1624/1624	1624/1624
Number of seats	2	2
Passenger seat	●	●
Cargo compartment volume m³	7.5	7.5
Tyre specifications	195/75R16LT	195/75R16LT
Minimum ground clearance (full load) mm	190	190
Minimum turning diameter m	13.9	13.9
Maximum speed km/h	80	80
Curb weight kg	1620	1650
Total weight kg	3060	3060
Rated load kg	1310	1280
CLTC operating range km	251	270
0~50km/h acceleration time S	≤8	≤8
Maximum climbing grade %	≥25	≥25
■ Motor parameters
Rated power kW	45	40
Peak power	80	75
Maximum speed r/min	12000	9000
Peak torque	220	265
■ Battery parameters
Battery type	Lithium iron phosphate	Lithium iron phosphate
Battery brand	Karry	Guoxuan
Battery capacity kwh	41.86	43.5
Fast charging time (min) Normal temperature SOC 30%~80%	≤30	≤30
Slow charging time (h) Normal temperature SOC 0%~100%	-	＜8
■ Braking, suspension, drive mode
Braking system (front/rear)	Front disc and rear drum	Front disc and rear drum
Suspension system (front/rear)	Front McPherson independent suspension/rear leaf spring non-independent suspension	Front McPherson independent suspension/rear leaf spring non-independent suspension
Drive type	Rear-mounted rear-wheel drive	Rear-mounted rear-wheel drive
■ External View
Black exterior mirrors	●	●
Bumper integrated grille	●	●
Rear license plate decorative plate (black)	●	●
■ Body
Number of cockpit doors	2	2
Rear side door (right)	Lift-up opening	Lift-up opening
Back door opening method	Double-opening tailgate	Double-opening tailgate
■ Interior
Interior mirror	—	—
PVC carpet (cockpit)	●	●
Driver's visor	●	●
Multi-function LCD instrument	●	●
Two-door step pedals (driver and co-driver)	●	●
Cargo compartment aluminum floor	●	●
■ Safety
Front disc and rear drum brakes	●	●
Front bumper (same color as body)	●	●
Rear bumper (black)	●	●
All-metal enclosed load-bearing body	●	●
High-strength side door anti-collision bar	●	●
Non-adjustable collapsible energy-absorbing steering column	●	●
Steering column lock	●	●
Position light	●	●
Daytime running light	—	—
Rear fog light	●	●
Front three-point seat belt	●	●
ABS+EBD	●	●
Reversing radar	●	●
Reversing image	—	—
Enclosed partition with observation window	●	●
Fire extinguisher	—	—
Emergency brake double flash reminder	●	●
■ Seat
Cloth seat fabric	●	●
Driver's seat back angle adjustable	●	●
Driver's seat manually adjustable front and rear	●	●
Co-driver's seat back angle adjustable	●	●
Co-driver's seat manually adjustable front and rear	●	●
■ Control device
Electric power steering (EPS)	●	●
ECO mode for energy saving	●	●
Central lock + remote key	●	●
PTC heating system	●	●
Electric glass lift for front door	●	●
Manual exterior mirrors	●	●
Headlights (halogen)	●	●
Front room lights	●	●
Multi-function steering wheel	—	—
Ordinary steering wheel	●	●
Single-tone speaker	●	●
■ Audio multimedia
10.1 floating screen (reversing image, Bluetooth, carlife, radio, USB charging and data transmission, no navigation, mobile phone APP)	—	—
Bluetooth audio	●	●
USB interface	●	●
2 speakers	●	●
■ Special device
Vehicle restrictions (the background can restrict the vehicle and cancel the restrictions)	●	●
LED cargo compartment lighting	●	●
Air conditioning system	●	●
OTA air upgrade (VCU, MCU, BMS, OBC+DCDC)	●	●
In-car temperature control technology for charging conditions (the air conditioning function can be turned on simultaneously when charging)	●	●
Full-size spare tire	—	●
On-board tools (trailer hook, reflective tripod, reflective vest)	●	●
Slow charging	—	●

"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional, and "-" - indicates that there is no such configuration;

Features

Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use 0

Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan, adopting a two-seat blind window cargo body structure design, the new car uses more aviation aluminum in the body materials, which reduces the weight of the vehicle by about 200 kilograms, and the weight of aluminum accounts for 58%, which can effectively absorb and decompose collision energy and improve the safety of the vehicle.

In addition, the 2023 Karry Dolphin EV has a cargo space of 7.5 cubic meters and a rated load of 1.1 tons, which can meet the needs of supermarket distribution and logistics transportation.

The 2023 Karry Dolphin EV features a three-spoke steering wheel with an in-line instrument cluster, while the center console has a floating layout, adding a sense of technology to the interior. In addition, the bee system equipped with the new car supports functions such as remote opening and closing, vehicle condition monitoring, remote pile finding, and remote upgrade. In urban conditions the cruising range will be more than 271 km and 200km full-load range make it sufficient for urban logistics. An alternate model offering a peak power of 75kW and a maximum torque of 265Nm is also available for smoother power delivery.

Pictures

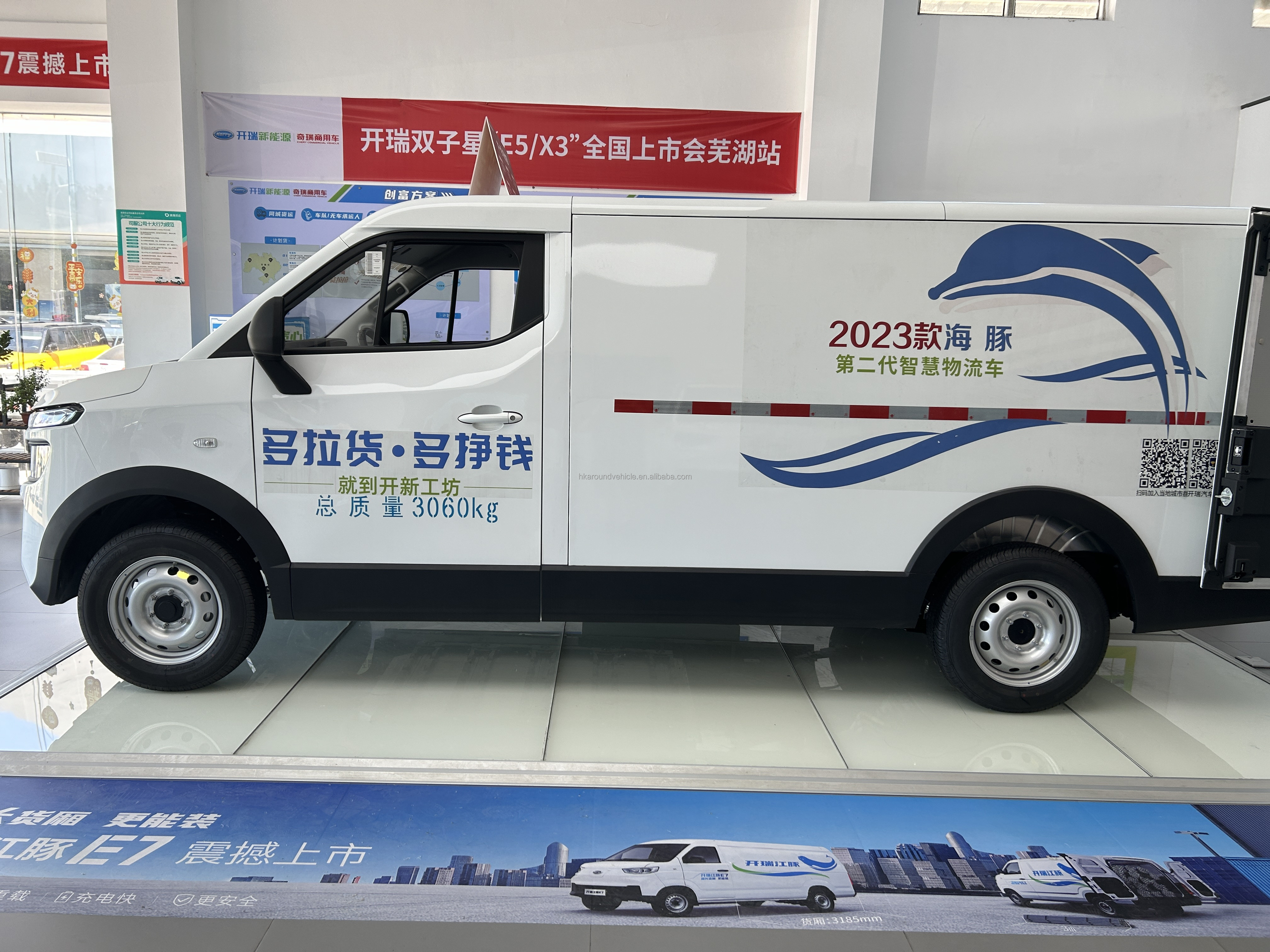

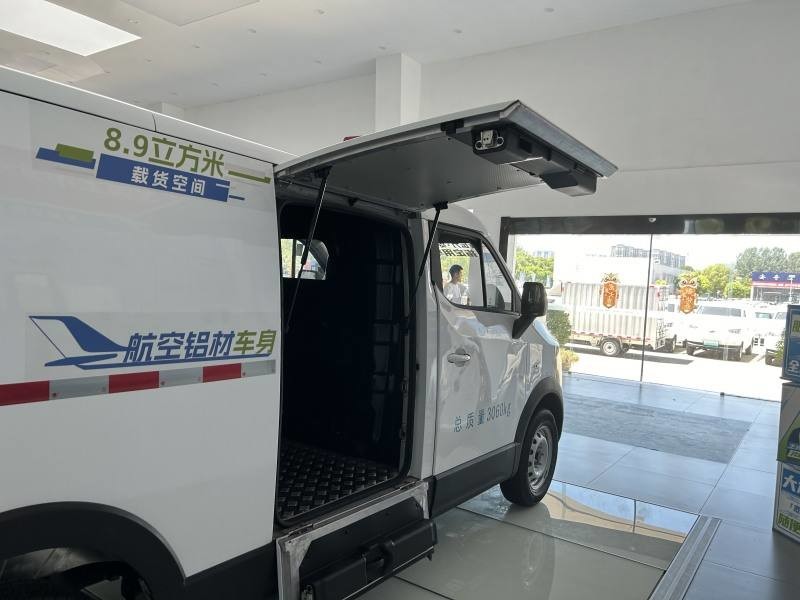

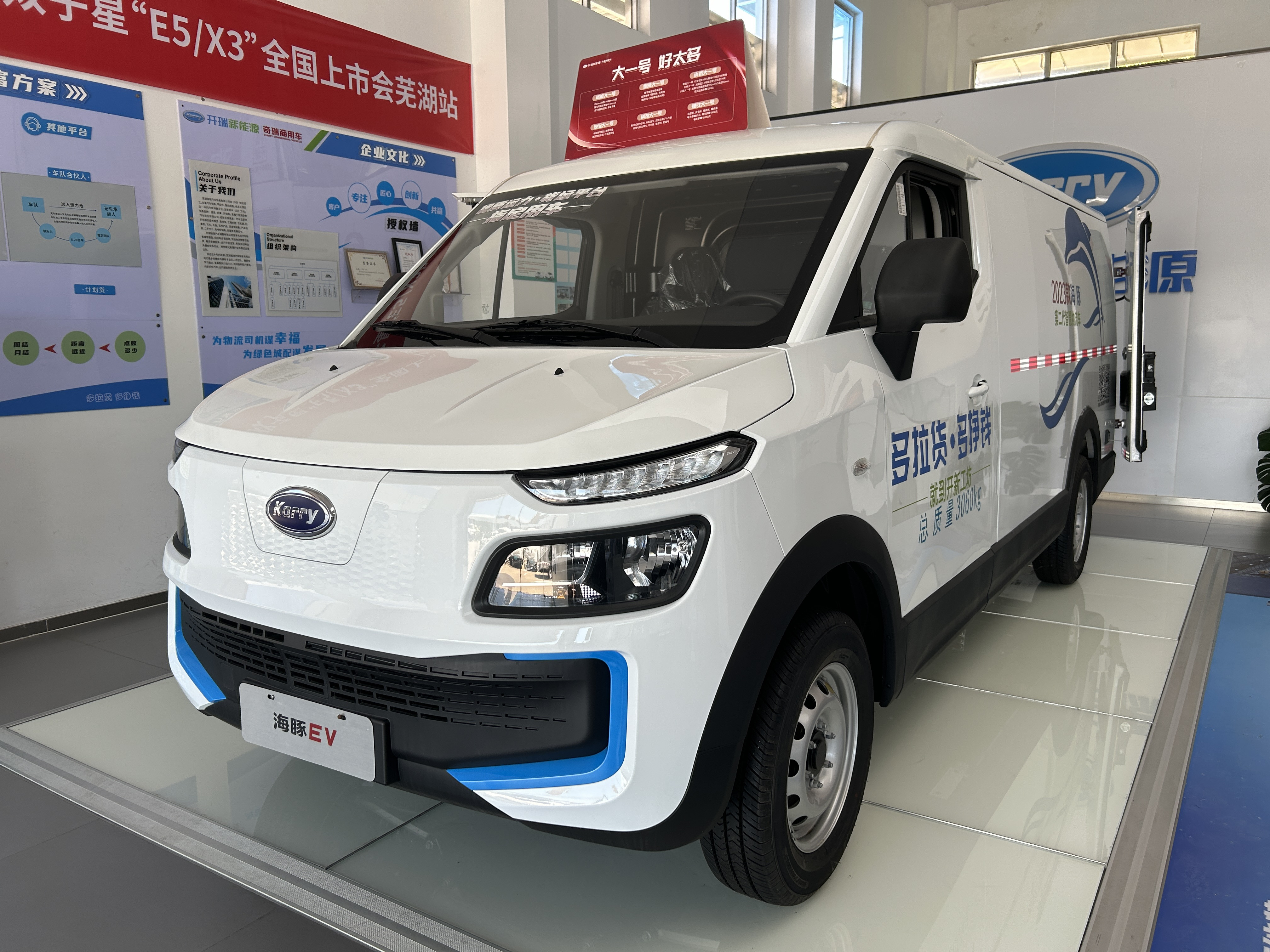

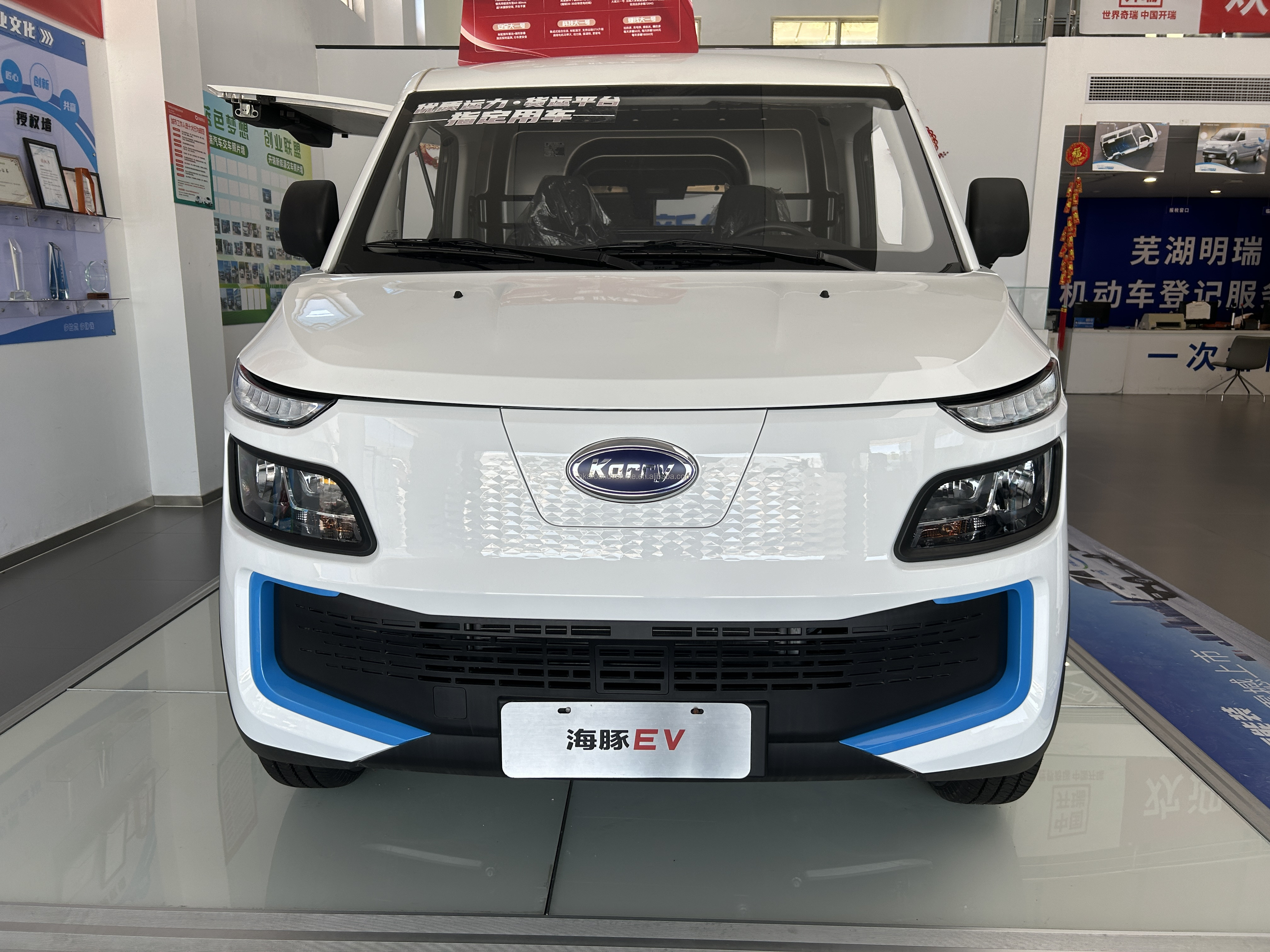

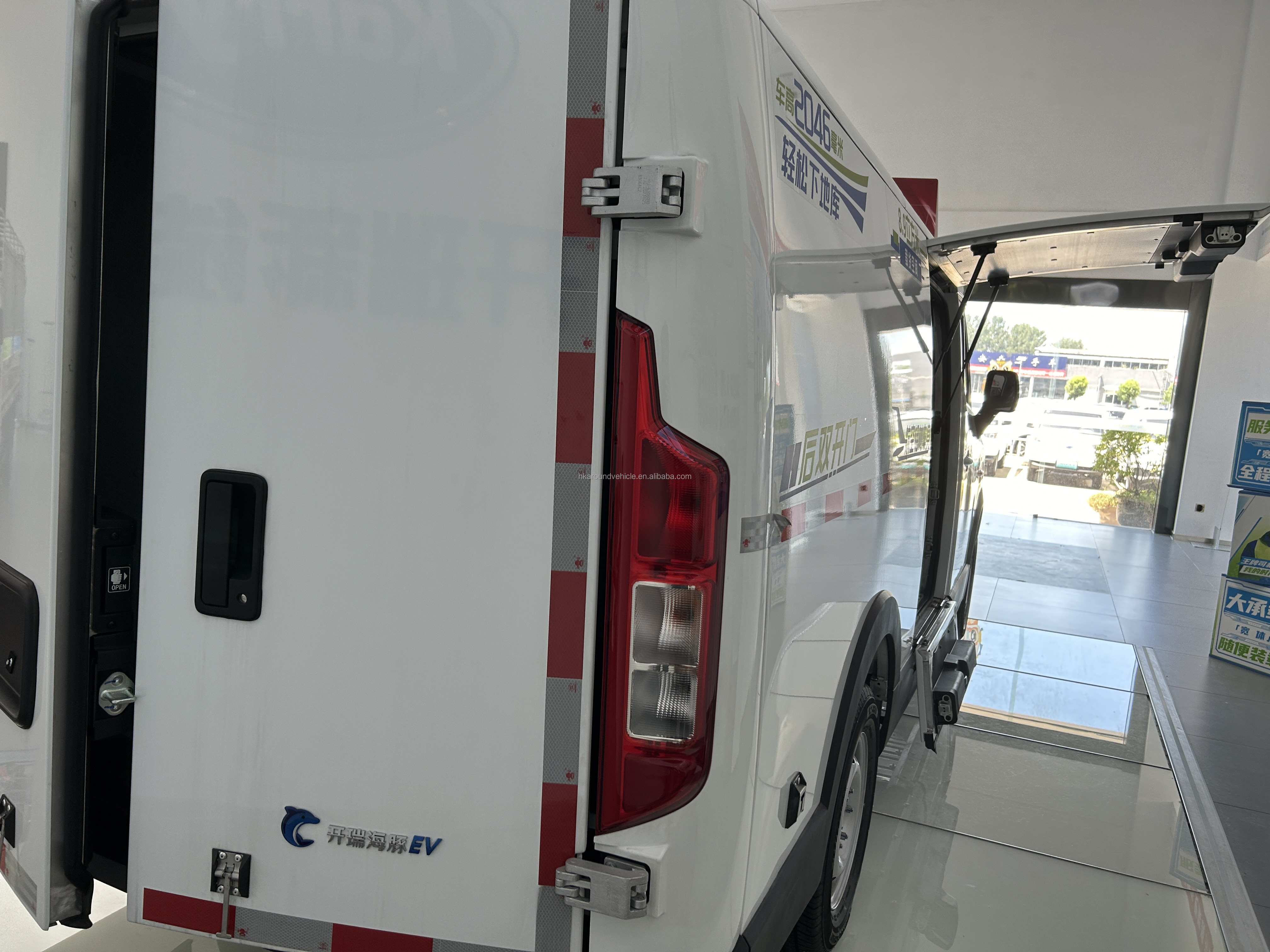

Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use 1

Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use 2
