Detail Information
Product Description

Detail Information
Product Name:	DFSK K01 K01L K02	Size:	396015601825 Mm
Track Front/Rear:	1310/1310 Mm	Fuel:	Gas/Petrol
Engine Model:	DK13	Maximum Speed:	100 Km/h
Displacement:	1293 Ml	Maximum Power:	68 KW
Maximum Torque:	125 N.m	Body Color:	Elegant White/crystal Silver
Full Interior Style:	Black Interior
Highlight:	Xiaokang Vans and Trucks , Vans and Trucks K01 , K01L cab cargo van

Product Description

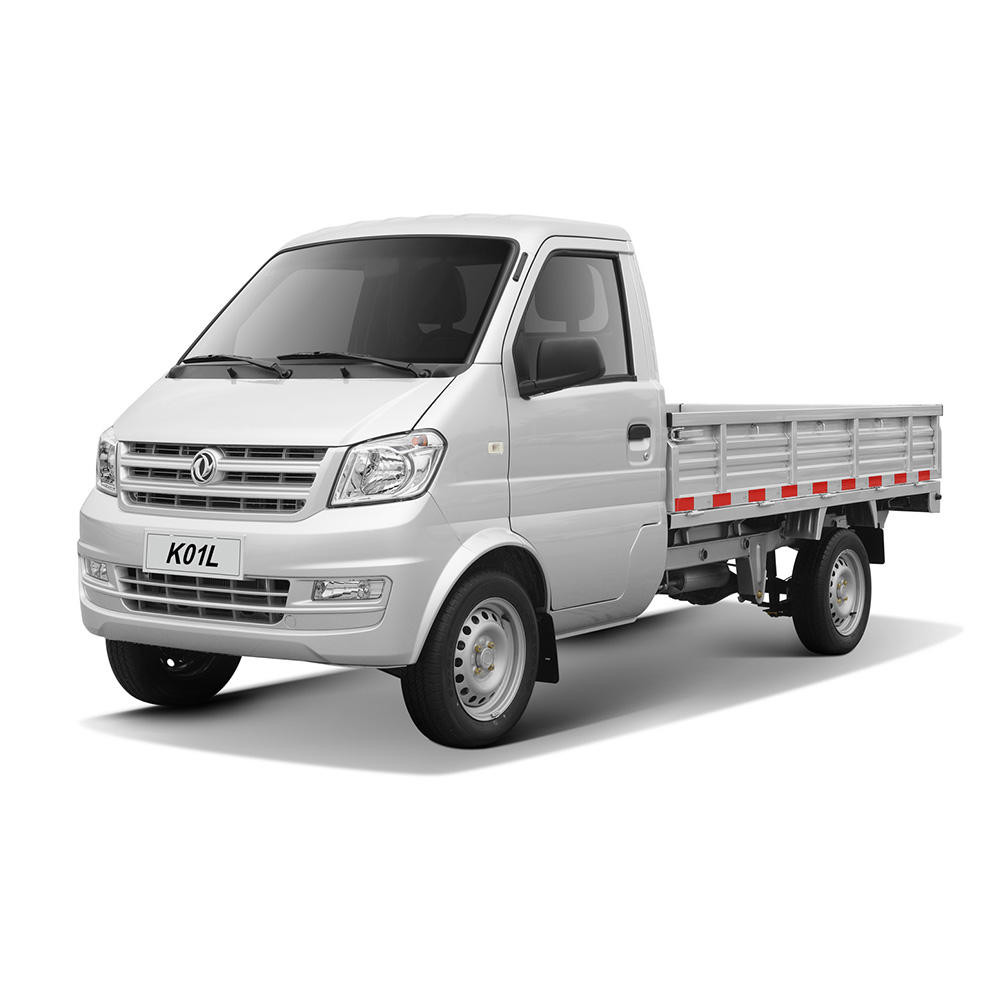

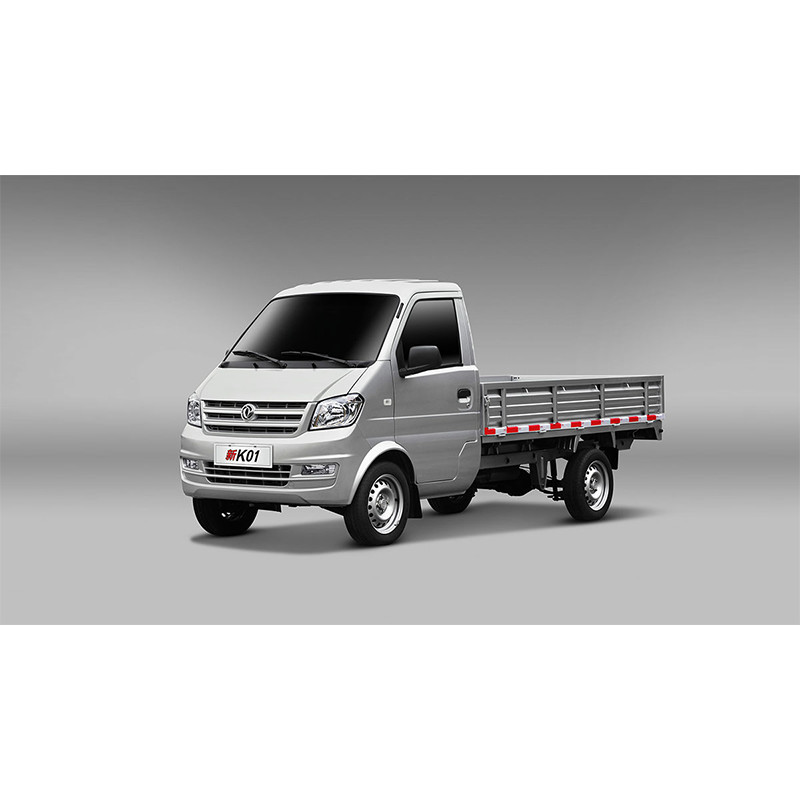

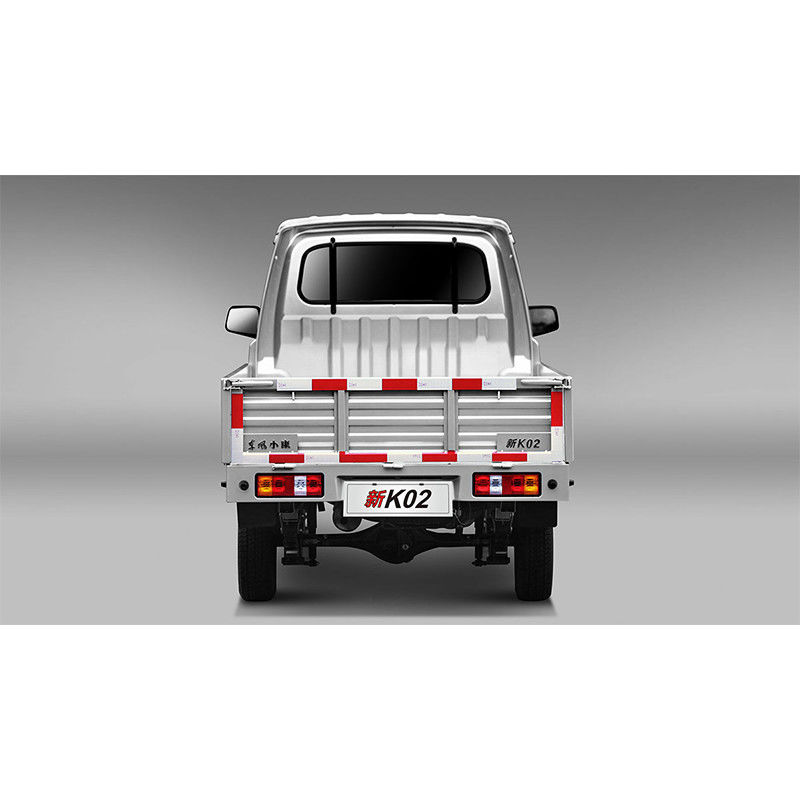

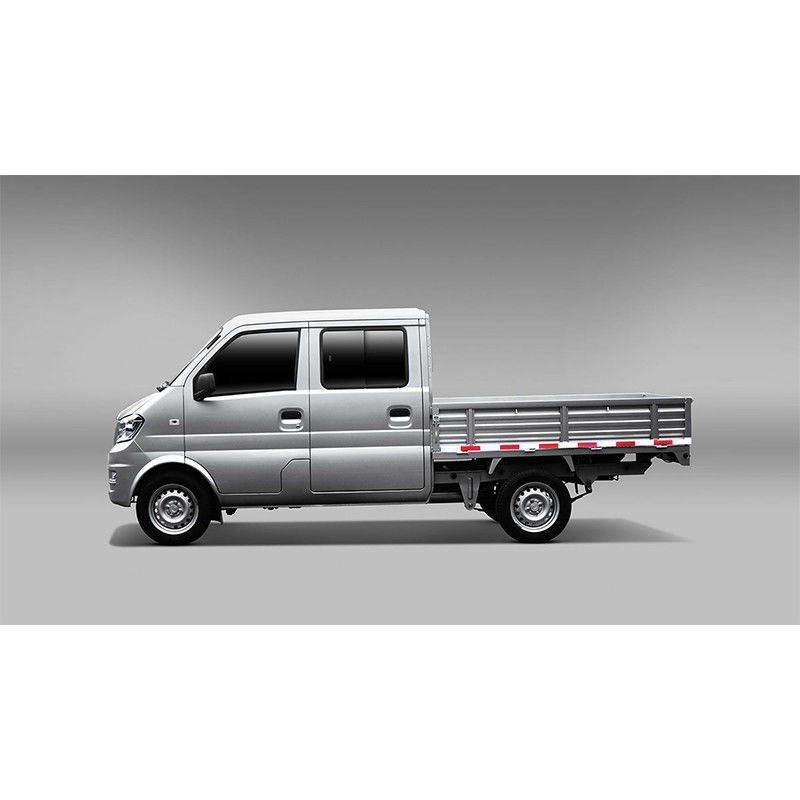

Dongfeng Xiaokang K01 K01L K02 Model Gasoline Crew Cab Cargo Van Pickup Truck

Specification

Model name	2024 K01 1.3L Basic	2024 K01L 1.3L Basic	2024 K02 1.3L Basic
Basic parameters
Number of Crew Members (People)	2		5
Emission standards	Country VI	Country VI	Country VI
Outline size: length * width * height (mm)	396015601825	443515601825	460015601840
Carton size: length * width * height (mm)	22601440340	27001440370	20001440370
Wheelbase(mm)	2515	2760	2760
Track Front/Rear (mm)	1310/1310
Kerb weight(kg)	880	910	990
Total mass(kg)	1770	1920	1990
Engine model	DK13	DK13	DK13
Engine type	Inline four-cylinder, four-stroke, water-cooled, electronically controlled fuel-injected gasoline engine
Displacement (ml)	1293	1293	1293
Maximum power (kW)	68	68	68
Maximum torque (N.m)	125	125	125
Fuel tank capacity(L)	50
Combined fuel consumption (L/100km)	6	6	6
Gearbox type	Five-speed/manual
Maximum speed (km/h)	100	100	100
Body form	Load-bearing body
Drive mode	Mid-mounted rear drive
Braking device	Front disc rear drum, dual-circuit hydraulic brake
Front and rear suspension	MacPherson independent suspension with front overhang, leaf spring non-independent suspension with 5 pieces at the rear
Turn to form	Mechanical steering (○Optional electronic assistance)
Tire model	165R14
Primary configuration
Body color	Elegant white/crystal silver
Steel wheel decorative covers	●	●	●
New styling front face	●	●	●
Steel wheels	●	●	●
Front/rear fenders	●	●	●
Electrically adjustable headlights	●	●	●
Front fog lights	○	○	○
Rear suspension six-leaf leaf spring non-independent suspension	-	○	○
corrugated container	-	●	●
Rear fence	○	○	○
Full interior style	Black interior
Main drive visor	●	●	●
Electronic instrument cluster	●	●	●
ESC radio	●	●	●
Ashtrays	●	●	●
Cigarette lighter	●	●	●
Anti-lock braking system (ABS/EBD)	●	●	●
Electric assist	○
MP5+Reversing video (Screen)	○
Front door power windows	○
Key fob (with central lock)	○
Single steam air conditioner	-	○	○

"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional

DFSK K01 K01L K02 Features

Dongfeng Xiaokang K01 K01L K02 Model Gasoline Crew Cab Cargo Van Pickup Truck 0

Dongfeng Xiaokang K01/K01L/K02 DK13 Engine

Dongfeng xiaokang K01,K01L,K02 mini truck has DK13 engine, maximum power 68kW, maximum torque 125Nm
Sleeve chain drive, timing chain drive with high efficiency and long life.
PDA controllable combustion technology improves engine performance, fuel consumption is only 6L per 100km, fuel saving is more efficient, economical and more environmentally friendly.

Dongfeng Xiaokang K01 K01L K02 Model Gasoline Crew Cab Cargo Van Pickup Truck 1

Bearer upgrade
The third generation chassis design technology, the reinforced design of seven vertical and two horizontal directions ensures that it can be installed,

stable and does not deform.
Reinforced sub-beam design, with a thickness of 170mm and a width of 79.82mm, greatly improving the load-bearing capacity
