Detail Information
Product Description

Detail Information
Product Name:	DFSK D71/D72	Fuel:	Gasoline
Seats:	2/5	Displacement:	1.6L/2.0L
Fuel Tank Capacity:	52L	Transmission Form:	5MT
Wheelbase:	3450 Mm	Front And Rear Track:	1487/1350 Mm
Braking Device:	Front Disc Rear Drum	Tyre Type:	185/R14 LT
Highlight:	Dongfeng Truck D71 2.0L , Dongfeng D72 Model 1.6L , Small Truck Split Cargo With Gantry

Product Description

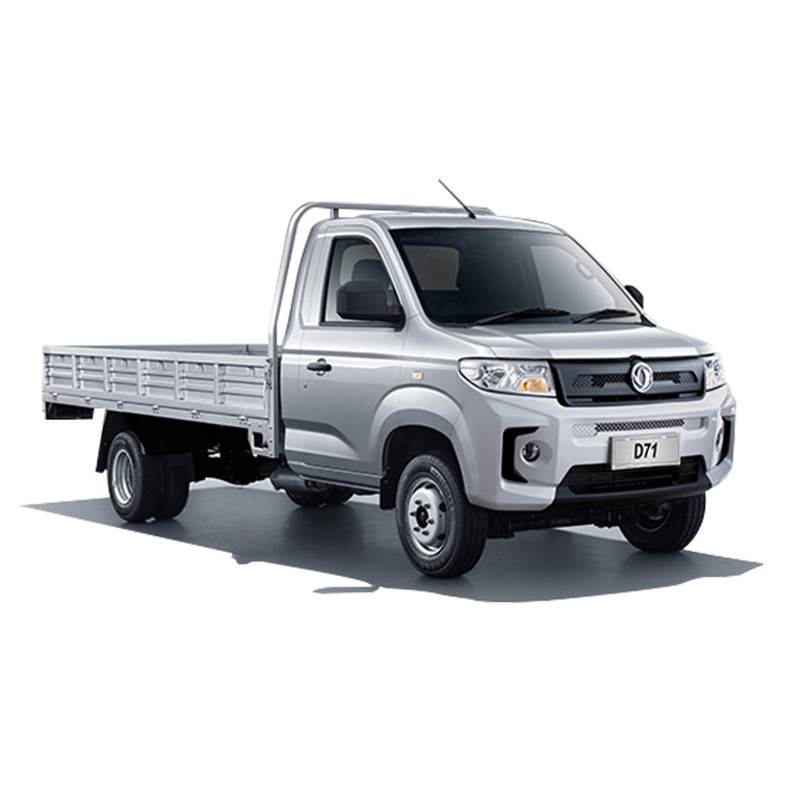

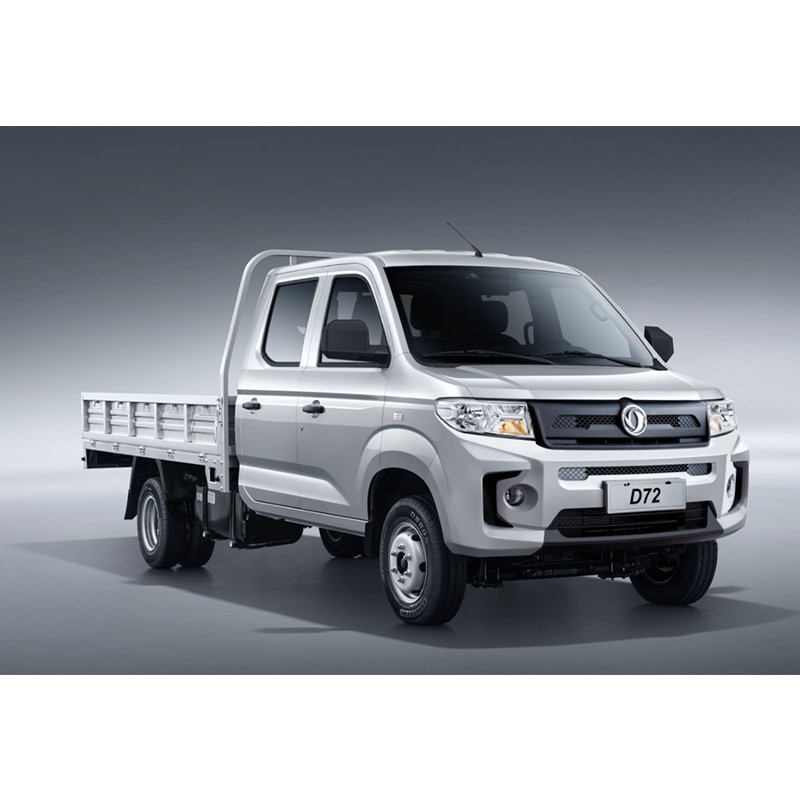

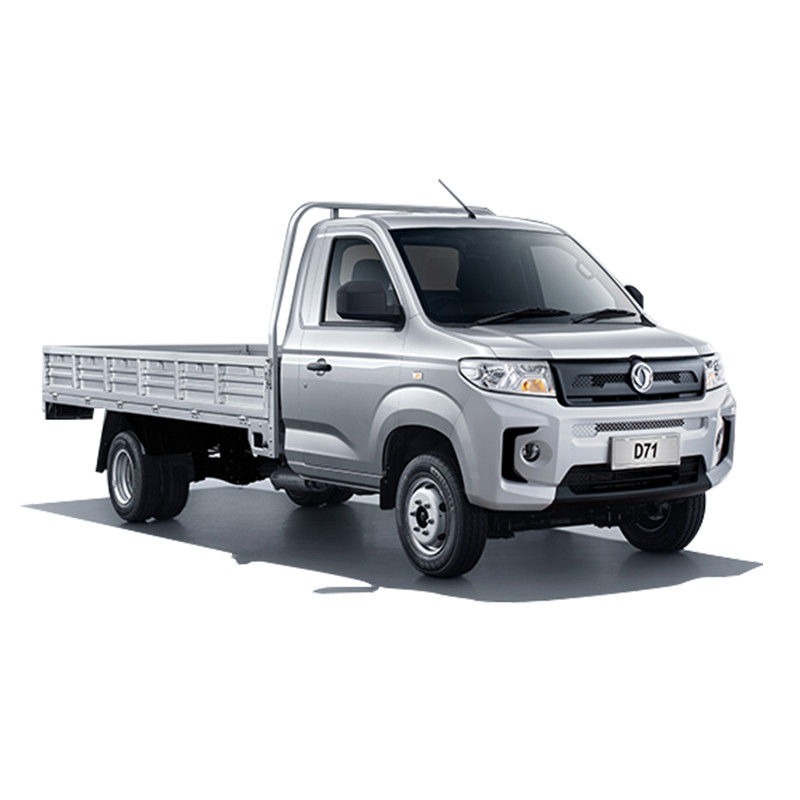

Dongfeng Truck D71/D72 Model 1.6L/2.0L Engine Displacement Small Truck Split Cargo Box With Gantry

Specification

	DFSK D71 (3.4m split cargo box with gantry)				DFSK D72 (2.6m split cargo box with gantry)


Models	D71 LV0(9V)		D71 LV1(8K)		D72 LV0(4H)		D72 LV1(8J)
Energy category	gasoline
Basic parameters
Body form	Non-load-bearing
Length(mm)	5710				5610
Width(mm)	1785				1785
Height(mm)	2050				2070
Wheelbase(mm)	3450				3450
Front and rear track(mm)	1487/1350				1487/1350
Case length(mm)	3400				2600
Case width(mm)	1680				1680
Cargo case height(mm)	370				370
Number of seats	2				5
Engine and rear axle
Engine	SFG16C	SFG20B	SFG16C	SFG20B	SFG16C	SFG20B	SFG16C	SFG20B
Displacement(ml)	1597	1998	1597	1998	1597	1998	1597	1998
Emission	CHINA VI
Maximum power (kW)	90	105	90	105	90	105	90	105
Maximum torque (N.m)	158	200	158	200	158	200	158	200
EFI	UMC
Drive axle ratio	5.125	4.889	5.125	4.889	5.125	4.889	5.125	4.889
System structure
Drive type	Mid-engine rear-wheel drive				Mid-engine rear-wheel drive
Front suspension type	6-piece longitudinal leaf spring non-independent suspension, upper leaf spring				6-piece longitudinal leaf spring non-independent suspension, upper leaf spring
Rear suspension type	7+5 longitudinally mounted leaf springs, non-independent suspension, upper leaf springs				7+5 longitudinally mounted leaf springs, non-independent suspension, upper leaf springs
Brake form	Front disc and rear drum				Front disc and rear drum

Parking brake type	Mechanical handbrake (central parking brake)				Mechanical handbrake (central parking brake)

Steering system	Electric power steering				Electric power steering

Gearbox
Transmission form	5MT
Clutch form	Hydraulic
External Configuration
Tire	185R14 LT 6PR(Dual rear wheels)

Rim	Steel wheels (silver)
wheel nuts	Galvanized nut
wheel caps/covers	—
Spare tire	185R14 LT 6PR Steel Wheels (Black)
Front/rear bumper	Front body color + black suit
Grille	Structure: One-piece Grill body: Black

Front/rear fenders	With front and rear fenders
Front combination headlight	Ordinary halogen headlights, height electrically adjustable
Front fog lights	●
Daytime running lights	—
Side turn signal	Yellow light bulb on fender, white lampshade
Wiper	Front wiper only (with bone)
Exterior mirrors	Leather pattern, mirror base, mirror case Nissan black
Skylight	—

Outside handle	Horizontal pull type, black
Full door glass	Lifting glass				Front door lift glass, rear door lift glass
Glass regulator	Electric lift				Front door electric lift, rear door manual lift

External water glue strip	Black
Rear combination lamp	Halogen, single pour single fog
Rear fog lamps	●Single fog light
Retro-reflector	●
Full vehicle logo	Front logo: Dongfeng LOGO (blue background) Inside nameplate: soft label Rear label: "Dongfeng Xiaokang" in full font Rear logo: Dongfeng LOGO (blue background) Model code: D71 When the SFG20B engine is selected, the displacement logo: 2.0L Reflective logo				Front logo: Dongfeng LOGO (blue background) Inside nameplate: soft label Rear label: "Dongfeng Xiaokang" in full font Rear logo: Dongfeng LOGO (blue background) Model code: D72 When the SFG20B engine is selected, the displacement logo: 2.0L Reflective logo






Engine protection cover	●
Tank	52L
Fuel tank cap opening method	Key opening
Internal configuration
Full car interior style	Nissan black + elegant gray
Sun visor	Light gray, PVC, single visor
Interior rearview mirror	Glass, Nissan black, manual anti-glare
Dashboard	Main Body Nissan Black
Instrument cluster	2 pointers + 3.5-inch LCD
Car audio and video system	MP3 player with USB interface + FM stereo/AM radio playback		10-inch central control color high-definition screen, car Bluetooth phone, external audio source interface USB, FM radio system (support MP3/WMA)		MP3 player with USB interface + FM stereo/AM radio playback		10-inch central control color high-definition screen, car Bluetooth phone, external audio source interface USB, FM radio system (support MP3/WMA)
Speaker	1, distributed on the instrument panel, driver's side
Heater control mechanism	Standard configuration: without A/C switch, three-knob decorative ring Optional: With A/C switch (with air conditioner), three-knob decorative ring		With A/C switch (with air conditioner), three-knob decorative ring		Standard configuration: without A/C switch, three-knob decorative ring Optional: With A/C switch (with air conditioner), three-knob decorative ring		With A/C switch (with air conditioner), three-knob decorative ring

Cigarette lighter	●
Steering wheel	Three-frame, normal, Nissan black		Three-spoke, multi-function (with Bluetooth), Nissan black		Three-frame, normal, Nissan black		Three-spoke, multi-function (with Bluetooth), Nissan black
Combination switch upper and lower cover	Nissan black
Shift control mechanism	Body Nissan black, shift ball head Nissan black
Handbrake	Nissan Black
Control box + cup holder	Control box Nissan black, with front cupholders, without center armrest
Reading light (front/middle/rear)	With front reading light				With front reading light, middle and rear without
Front door light switch	●
Rear door light switch	—
Trumpet	Snail type
Air conditioner	○(Optional single steam air conditioner)		●(single steam air conditioner)		○(Optional single steam air conditioner)		●(single steam air conditioner)
Interior panels (door/side panels)	Front door: Nissan black, injection molded interior panels				Front door: Nissan black, injection molded interior panels Middle door: Nissan black, full leather (with cloth base) + back foam

Roof (hard top/soft top)	Hard top, non-woven fabric, light gray
Safety handle	1 piece, elegant gray				1 piece, elegant gray
Car handle (mounted on the column)	2 pcs, one on each side, elegant gray				4 pcs, 2 pcs on each side, elegant gray
Armrest + rocker handle	——(The front door interior panel comes with armrest)				——(Front door interior panel comes with armrest)/●Middle door

Inward opening handle	Base Nissan black, handle Nissan black Locking button + bushing

Locking button + bushing	Integrated with inner handle, locking button, without bushing
Overall description of the seat	Two-seater, fabric seats, Nissan black + blue and white 2				Five-seater, fabric seats, Nissan black + blue and white 2
Front seats	Driver's seat 4-way manual adjustment: with slide rail, adjustable backrest, split headrest Passenger's seat 2-way manual adjustment: without slide rail, adjustable backrest, split headrest

Second row seats	—				The seat cushion is integral, the seat cushion is reversible, and the head rests on the rear panel
Seat belt	Three-point type: 3+3, ordinary type, Nissan black				Three-point front row: 3+3, regular, Nissan black; Second row: 3+2+3, regular style, Nissan black

Carpet	1.6mm pebbled PVC foam carpet + insulation layer, Nissan black
Floor decoration	Nissan Black
Floor battens/steps	Nissan Black
Safe configuration and intelligence
Anti-lock braking system (ABS/EBD)	●
Reversing radar	○		●		○		●
Reversing video images	—		●		—		●
Driving recorder	—		●		—		●
Central locking	Remote control
Key	One remote control key + one ordinary key
GPS navigation system	—		●		—		●
Non-stop toll collection system (ETC)	○

“●”——Indicates that this configuration is available, “○”——Indicates that this configuration is optional,

“-”——Indicates that this configuration is not available

Dongfeng Samll Truck D71/D72 Model 1.6L/2.0L Small Truck Flated Feature

Dongfeng Truck D71/D72 Model 1.6L 2.0L Engine Displacement Small Truck Split Cargo Box With Gantry 0

DFSK D71/D72 mini truck Large cargo space

DFSK D71/D72 6*2 mini truck with 3.4 * 1.68 m large sized cargo space, small truck split cargo box with gantry.

Dongfeng Truck D71/D72 Model 1.6L 2.0L Engine Displacement Small Truck Split Cargo Box With Gantry 1

DFSK D71/D72 6*2 Small truck has Ultra-strong engine, ultra-high load capacity

Dongfeng Trucks D71 and D72 models have 1.6-liter and 1.2-liter engine displacements respectively.
2.0L is the strongest power of the same level, and can easily cope with climbing with full load.
The maximum horsepower is 143, and the maximum torque is 200N. m.
The maximum load is 3t, fits for heavy cargo.
The whole system is equipped with double rear wheels+light truck straight beam as standard.

Dongfeng Truck D71/D72 Model 1.6L 2.0L Engine Displacement Small Truck Split Cargo Box With Gantry 2

DFSK D71/D72 6*2 small cng commercial vehicles has big driving room

More comfortable driving and riding: 1.76m * 1.81m, the longest and widest driving space at the same level.
Safer use: 780mm long head+light truck body design.

Dongfeng Truck D71/D72 Model 1.6L 2.0L Engine Displacement Small Truck Split Cargo Box With Gantry 3

DFSK D71/D72 6*2 mini cng truck minivan has double rear wheels

Photo Gallery

Dongfeng Truck D71/D72 Model 1.6L 2.0L Engine Displacement Small Truck Split Cargo Box With Gantry 4

Certification

Dongfeng Truck D71/D72 Model 1.6L 2.0L Engine Displacement Small Truck Split Cargo Box With Gantry 5

Dongfeng Truck D71/D72 Model 1.6L 2.0L Engine Displacement Small Truck Split Cargo Box With Gantry 6

Facotry

Dongfeng Truck D71/D72 Model 1.6L 2.0L Engine Displacement Small Truck Split Cargo Box With Gantry 8

Tag:

Product Details:
Place of Origin:	Chongqing, China
Brand Name:	DFSK
Model Number:	D71/D72
Payment & Shipping Terms:
Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	By Container
Delivery Time:	10-15 working days
Payment Terms:	L/C, T/T
Supply Ability:	70000 units per year
